Kele CD-1W Carbon Dioxide CO2 Sensor Non-Dispersive Infrared Transmitter
by Kele
Sold out
$5.00
SKU CD-1W_USED
Kele CD-1W Carbon Dioxide CO2 Sensor Non-Dispersive Infrared Transmitter

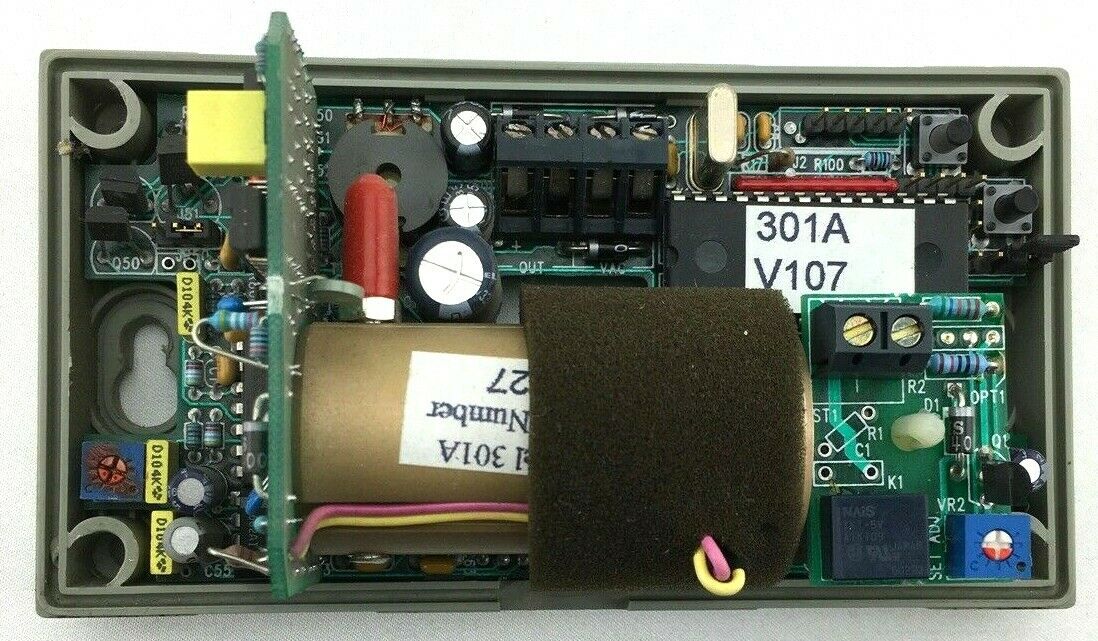

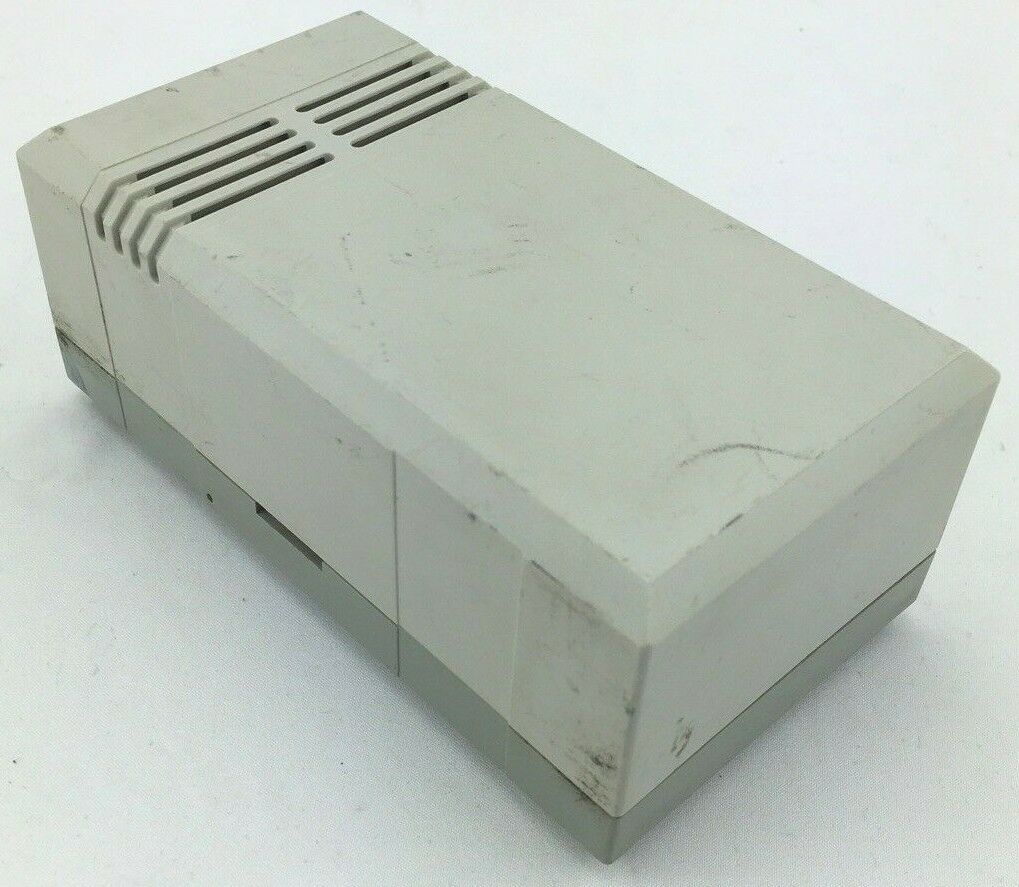

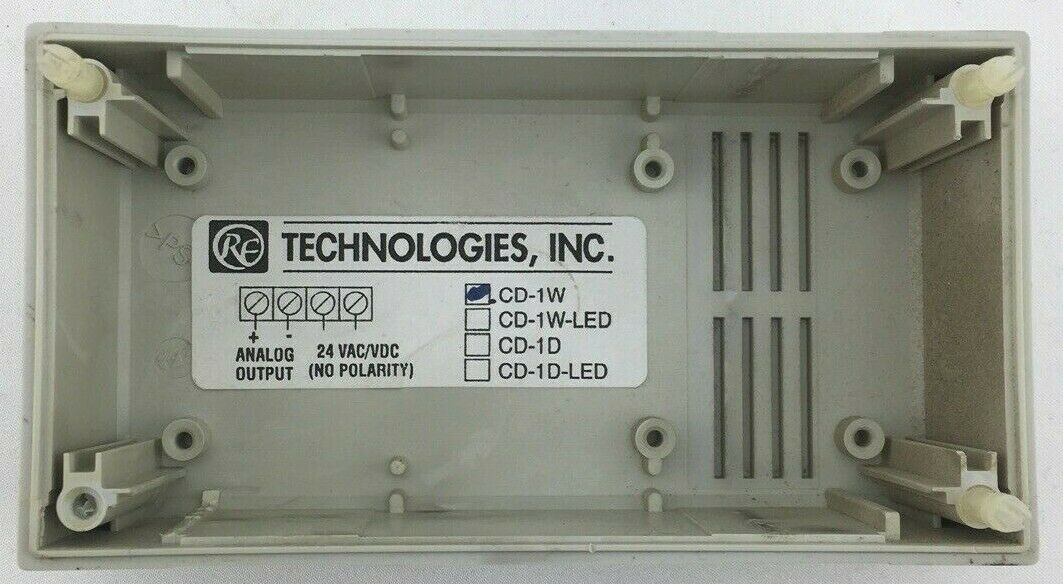

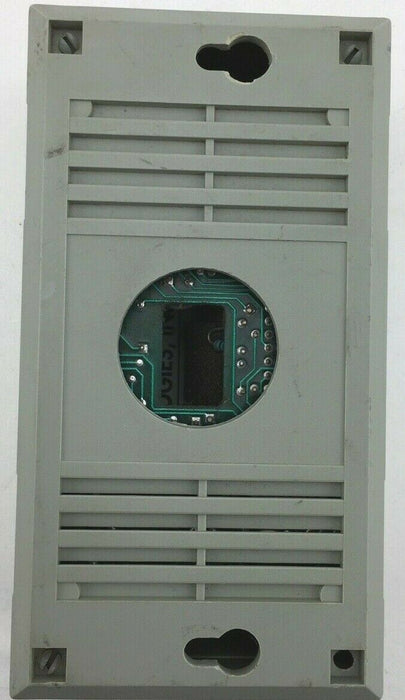

Grade B physical condition. Housing is missing one corner post (see pictures).
DESCRIPTION
The Kele Model CD-1W (wall) is a non-dispersive infrared carbon dioxide transmitters. It measures environmental carbon dioxide levels in
ventilation systems and indoor living spaces in compliance with ASHRAE and other ventilation efficiency standards. It includes a relay output that can be configured to open or close above a user-adjustable set point. Model CD-1W is packaged in a compact,
attractive enclosure. Isolated power terminals and a fully
floating analog output simplify installation. The analog output is jumper-selectable for either 4-20 mA or 0-10 VDC.
FEATURES
• 24 VAC/DC power
• 0-10 VDC or 4-20 mA analog output,
jumper-selectable
• 0-2000 ppm CO2 range
• Wall-mount version
• Electrically isolated output and power
• Compact, attractive enclosure
• Alarm relay with field-adjustable set point
• Simple single-point calibration
