Kele CD-1W Carbon Dioxide CO2 Sensor Non-Dispersive Infrared Transmitter

Kele CD-1W Carbon Dioxide CO2 Sensor Non-Dispersive Infrared Transmitter

by Kele

Sold out

$5.00

SKU CD-1W_USED

Quantity

Kele CD-1W Carbon Dioxide CO2 Sensor Non-Dispersive Infrared Transmitter

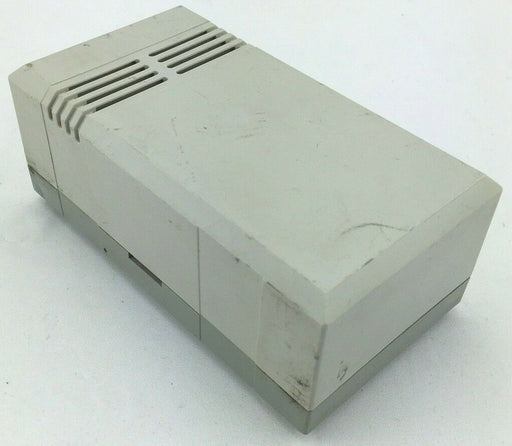

Grade B physical condition. Housing is missing one corner post (see pictures).

DESCRIPTION

The Kele Model CD-1W (wall) is a non-dispersive infrared carbon dioxide transmitters. It measures environmental carbon dioxide levels in ventilation systems and indoor living spaces in compliance with ASHRAE and other ventilation efficiency standards. It includes a relay output that can be configured to open or close above a user-adjustable set point. Model CD-1W is packaged in a compact, attractive enclosure. Isolated power terminals and a fully floating analog output simplify installation. The analog output is jumper-selectable for either 4-20 mA or 0-10 VDC.

FEATURES

• 24 VAC/DC power

• 0-10 VDC or 4-20 mA analog output, jumper-selectable

• 0-2000 ppm CO2 range

• Wall-mount version

• Electrically isolated output and power

• Compact, attractive enclosure

• Alarm relay with field-adjustable set point

• Simple single-point calibration
