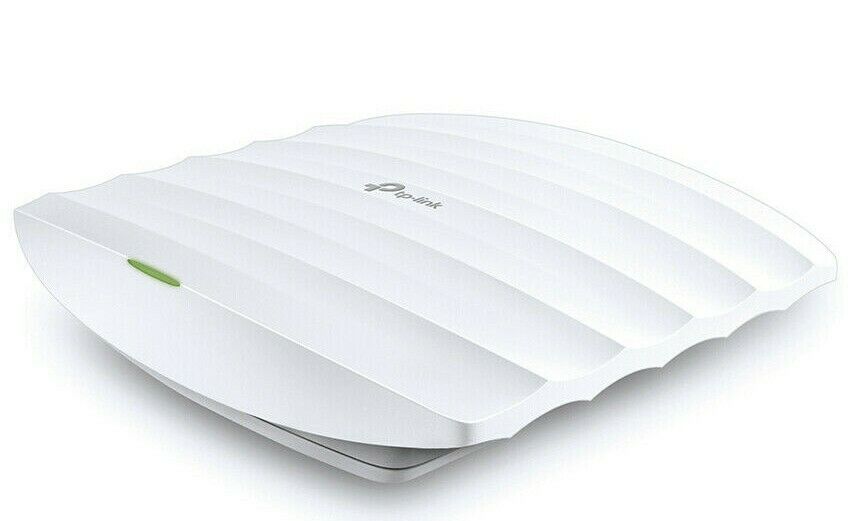

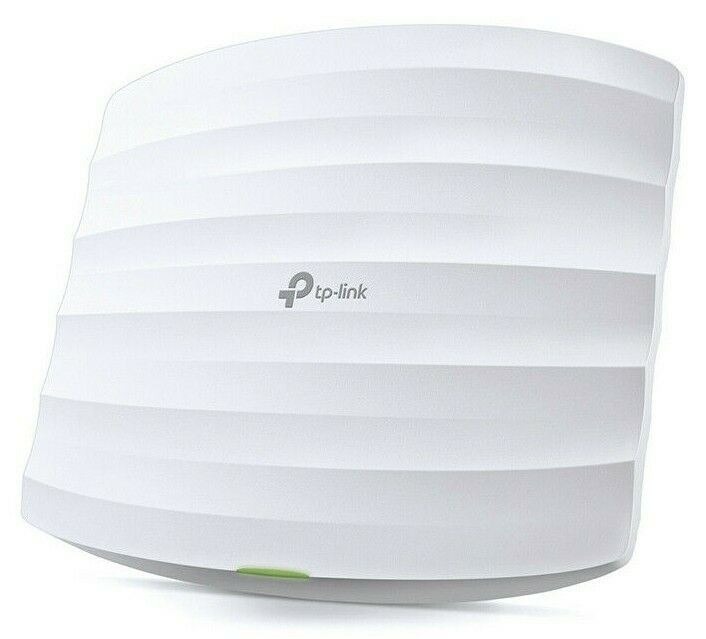

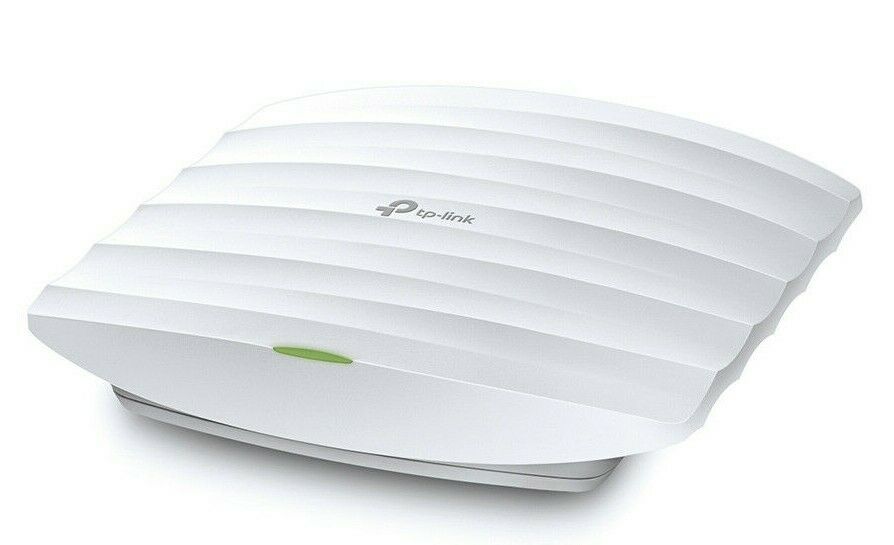

TP-Link EAP330 1900Mbps Managed Wireless AP Gigabit WIFI POE Access Point
TP-Link EAP330 1900Mbps Managed Wireless AP Gigabit WIFI POE Access Point

TP-Link EAP330 1900Mbps Managed Wireless AP Gigabit WIFI POE Access Point

by TP-LINK
Sold out
$99.00
SKU EAP330
TP-Link AC1900 Wireless Dual Band Gigabit Ceiling Mount Access Point EAP330 (US Version)
NEW IN BOX

Easily deploy a single unit to hundreds in minutes. Amazing range and speed. Heavy duty build. Product ships with Power supply (not commonly used if you use POE) and ceiling mount bracket. Retail packaging does NOT have a factory seal which is common in the EAP series.

OVERVIEW
  •  Speeds of up to 1.9Gbps over concurrent dual band 802.11ac Wi-Fi with MIMO and TurboQAM technologies
  •  Airtime Fairness, Beamforming, and Band Steering Technologies guarantee optimal RF performance for business-level applications
  •  Link aggregation joins two gigabit Ethernet ports to break the bottleneck in network backhaul capacity
  •  FREE EAP Controller Software lets administrators easily manage hundreds of EAPs
  •  Captive portal provides a convenient method for guest authentication
  •  Power over Ethernet (802.3at) support and simple mounting design allow for flexible deployment and convenient installation

SPECIFICATIONS
HARDWARE FEATURES

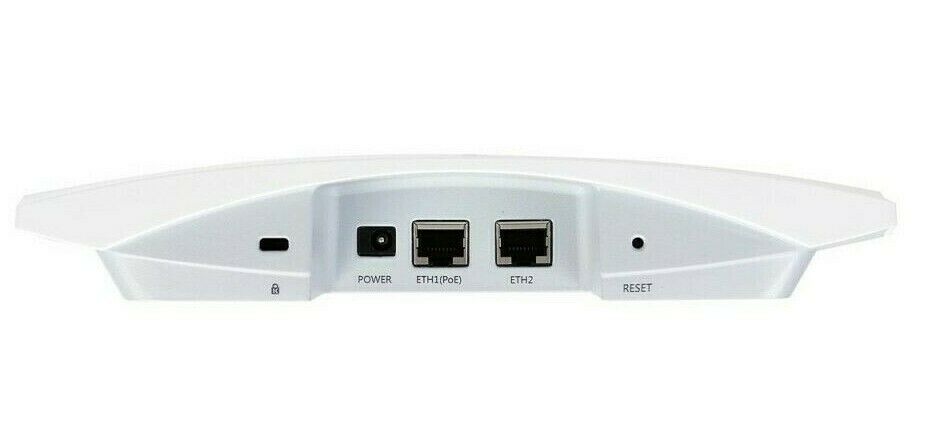

Interface Gigabit Ethernet (RJ-45) Port *2
（ETH1 Support IEEE802.3at PoE）
Physical Security Lock Kensington Lock Slot
Button Reset
Power Supply PoE or External 12VDC / 2.5A Power Supply
Power Consumption US: 21.2 W
Dimensions ( W x D x H ) 8.7 x 7.6 x 1.4 in. (220.5*193.5*36.5mm)
Antenna Type Internal Omni
2.4GHz: 3* 6dBi
5GHz: 3*7dBi
Mounting Ceiling /Wall Mounting (Kits included)
Hardware Watch Dog Yes
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac/n/g/b/a
Frequency 2.4GHz and 5GHz
Signal Rate 5GHz:Up to 1300Mbps
2.4GHz:Up to 600Mbps
Transmit Power < 27dBm
Wireless Functions Multiple SSIDs （Up to 16 SSIDs, 8 for each band）
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control （Adjust Transmit Power on dBm）
QoS(WMM)
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Link Aggregation
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,
WPA-PSK / WPA2-PSK
MANAGEMENT
Omada Cloud Access Yes
Omada App Yes
Omada Cloud Controller Yes
Omada Controller Software Yes
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
SSH Yes
Web-based Management HTTP/HTTPS
L3 Management Yes
Multi-site Management Yes
Management VLAN Yes
OTHERS
Certification CE, FCC, RoHS
Package Contents AC1900 Wireless Dual Band Gigabit Access Point EAP330
Power Adapter
Mounting Kits
Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows 10
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
