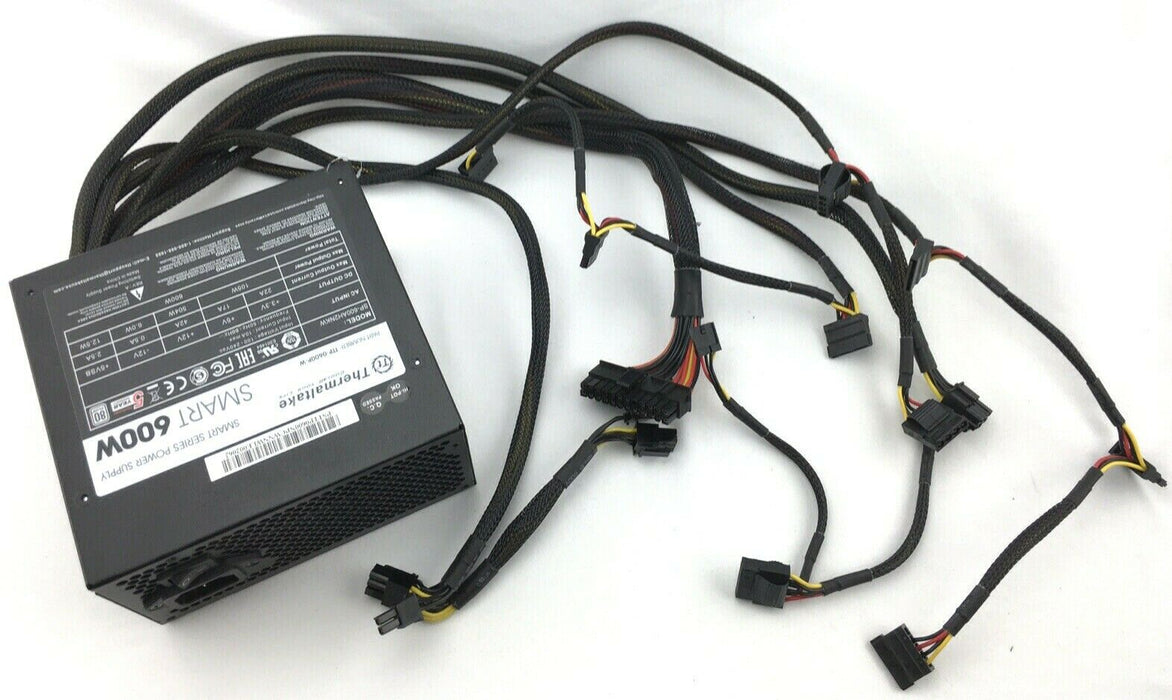

Thermaltake SP-600AH2NKW Smart 600W Power Supply Desktop PSU 80 PLUS TTP-0600P-W

Sold out
$45.99
SKU SP-600AH2NKW_USED

Thermaltake SP-600AH2NKW Smart 600W Power Supply Desktop PSU 80 PLUS TTP-0600P-W

Grade A- condition; tested & working.



FEATURES


Thermaltake Smart 600W

Incorporating various high-quality components, the Smart Series – models are rated from 500W to 700W – saves energy through its high efficiency of up to 86% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

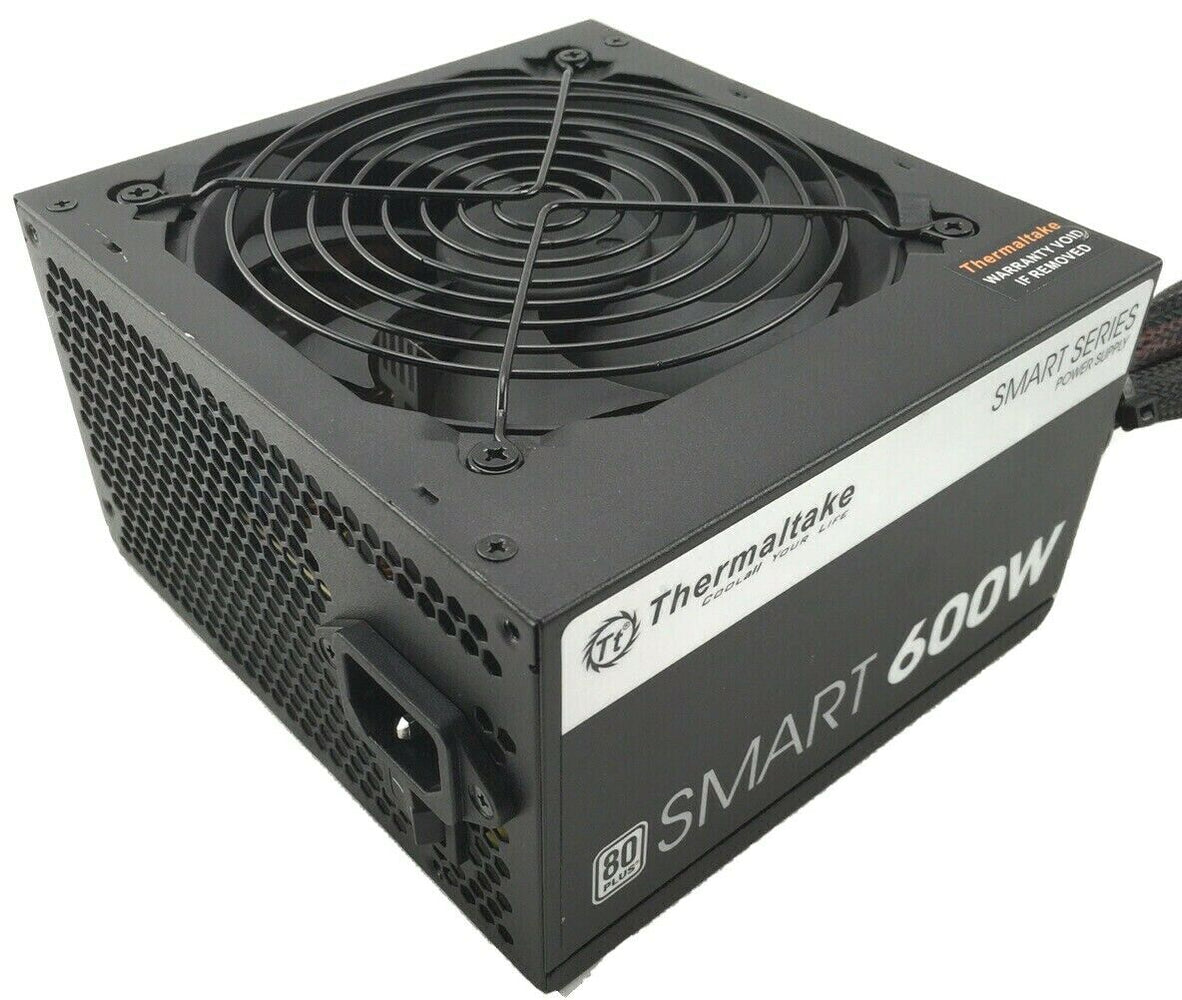

120mm Ultra Quiet Fan

Smart Series adopt 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.

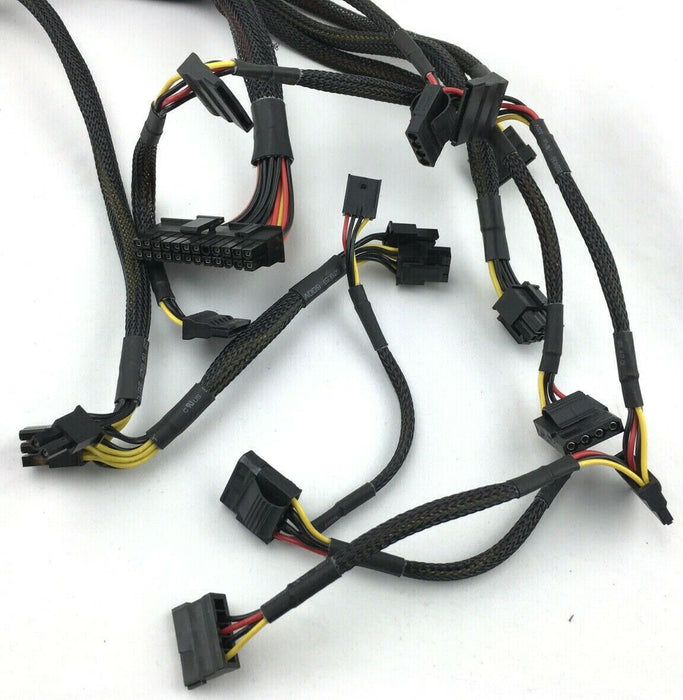

Multiple Connectors

Smart 600W connector’s specification as below:


80 PLUS Standard Certified and Haswell Ready

Smart Series saves energy through its high energy efficiency of up to 86% and is 80 PLUS® Standard Certified.


High-Quality Components

High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.


Single +12V Output

Smart Series is equipped with a powerful +12V rail, superior performance under all types of system loading. Please see the output specification below:

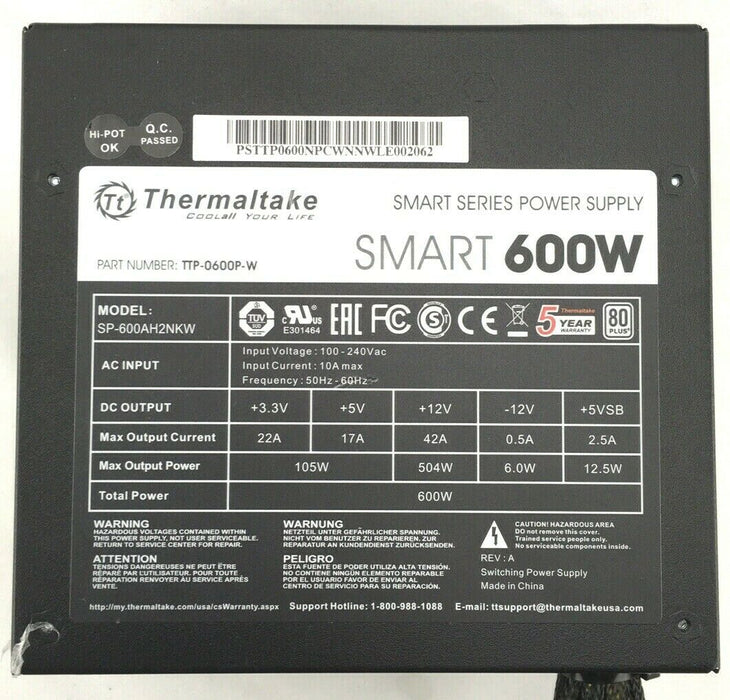

AC INPUT

Input Voltage: 100V-240V
Input Current: 10A max
Frequency: 50Hz-60Hz

DC OUTPUT +3.3V +5V +12V -12V +5Vsb
Max Output Current 22A

17A

42A

0.5A

2.5A
Max Output Power

105W

504W

6.0W

12.5W

Continuous Power

600W



SPECIFICATIONS

P/N PS-SPD-0600NPCW-W

PS-SPD-0600NPCWUS-1
WATTS 600W
RGB FAN No
FORM FACTOR ATX
TYPE Intel ATX 12V 2.3
COLOR

Black

OPERATING TEMPERATURE

5℃ to +40℃

COOLING SYSTEM 120mm Fan: 1800 R.P.M. ± 10%
EFFICIENCY

82-86% efficiency @ 20-100% load

MTBF

100,000 hrs minimum
