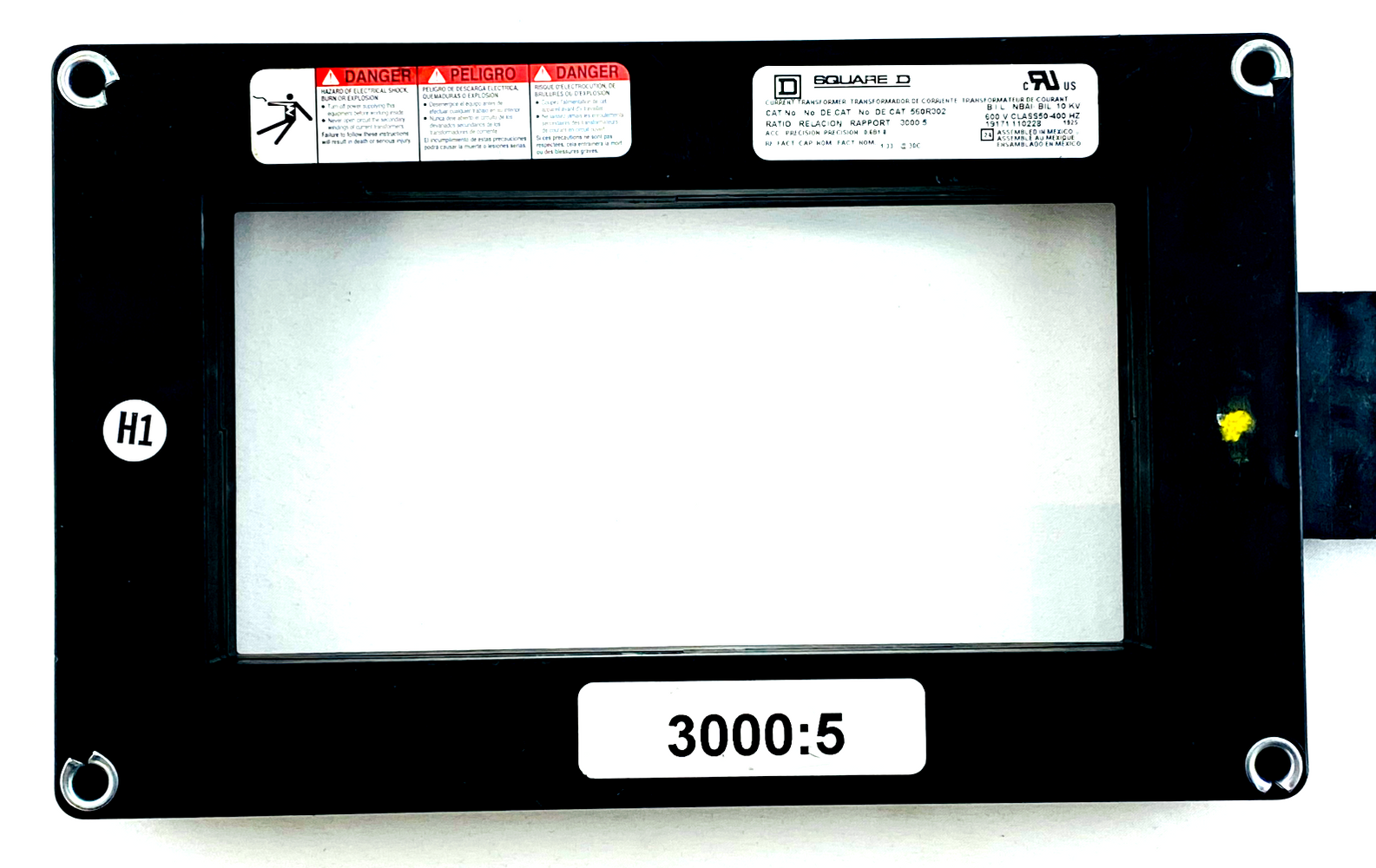

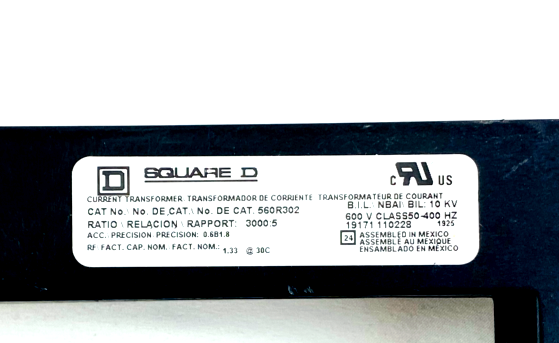

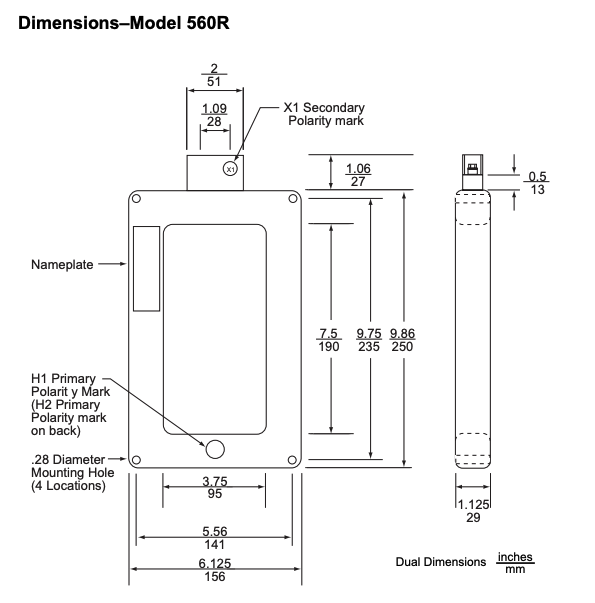

Square D 560R 302 Full Wave Current Transformer 3000:5 Ratio ANSI C57.13 UL10kV
by Square D
$750.00
SKU Square D 560R302
Square D 560R 302 Current Transformer 3000:5 Ratio ANSI C57.13 UL Rated NEW
No packaging - Spare part from project - Never used
ABOUT
Rating Factor 30 °C Ambient Temp. = 1.33, Rating Factor 55 °C Ambient Temp. = 1.0
Model: 260R-302 Rating Factor 30 °C Ambient Temp. = 1.0, Rating Factor 55 °C Ambient Temp. = 0.75
Ratios are based on one primary turn, with user-applied primary conductor. OEM instructions for other ratios using multiple primary turns or secondary turns.
FEATURES
- Features rectangular window for bus conductor applications with minimum clearance requirements.
- Large, easy-to-read ratios are clearly marked on the case.
- Secondary terminals are #10-32 brass screws and include flat washers and bronze lockwashers for easy installation.
- Frequency: 25-400 Hz (Modes 210R and 260R).
- Insulation: 10 kV BIL full wave (600 volt class).
- Applicable Standard – ANSI C57.13.
- UL and CUL recognized per Classification XODW2.
