Samsung SND-7080 3MP 1080p IP Security Camera Ceiling Mount Dome PoE ONVIF
by Samsung
Sold out
$144.00
SKU SND-7080 USED

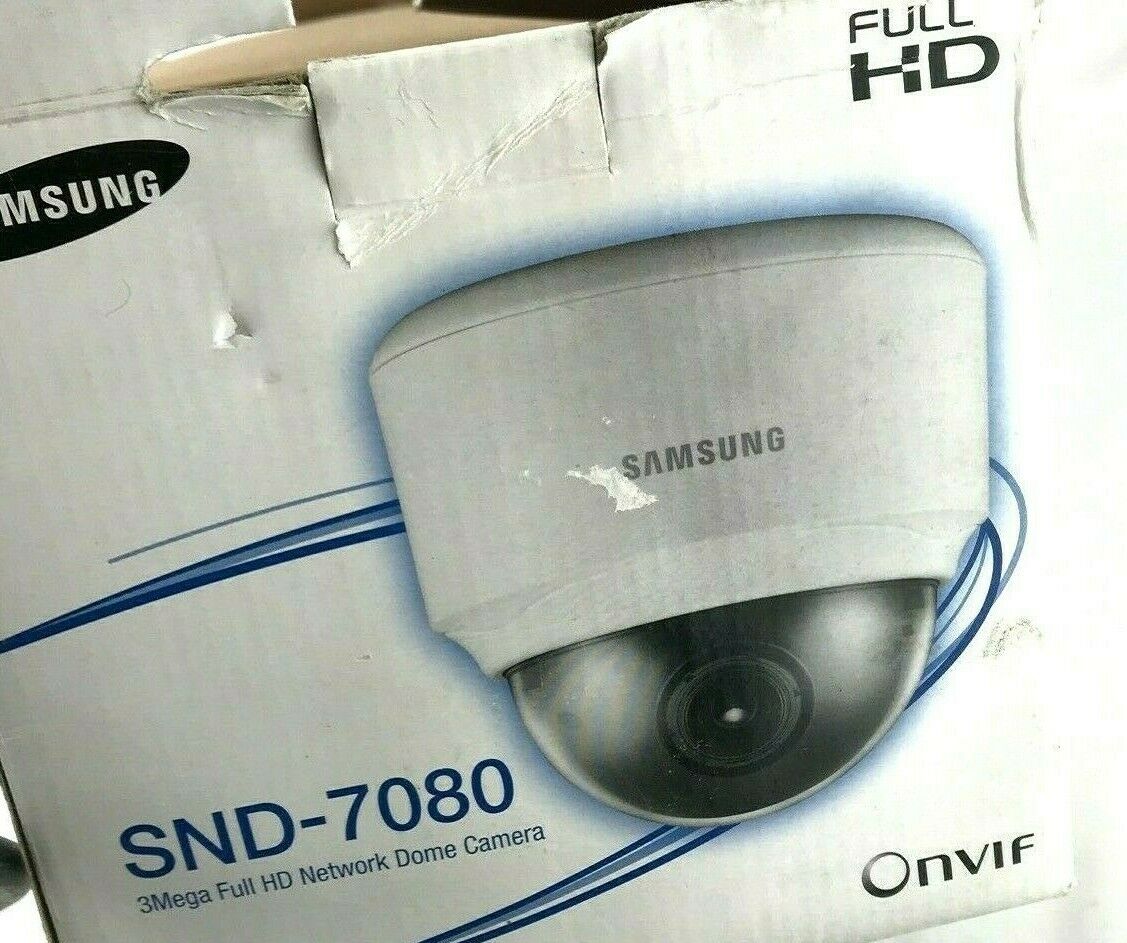

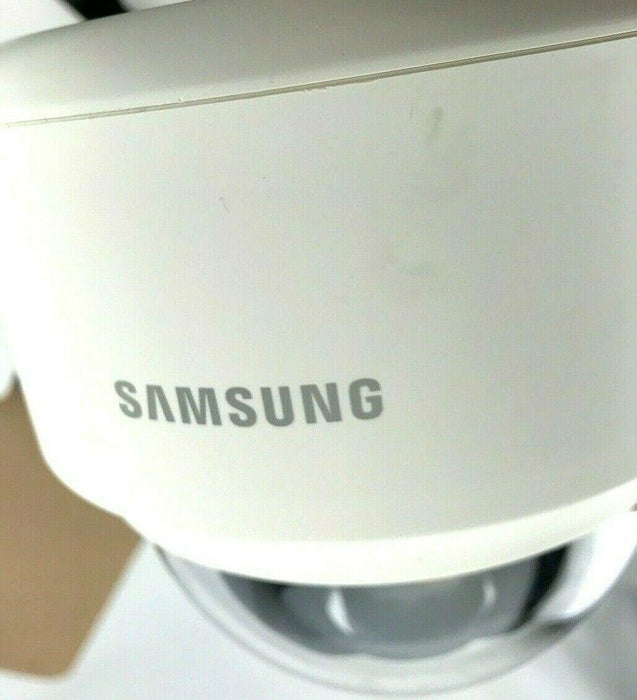

Samsung SND-7080 3MP 1080p Indoor Hybrid IP PoE Dome Camera Surface-Mount
Grade A- physical condition. Tested & working. Comes in box with manuals and discs.
OVERVIEW
The surface-mount SND-7080 3MP 1080p Indoor Hybrid IP Dome Camera from Samsung utilizes a 1/2.8" 3MP color CMOS sensor to capture up to 1920x1080 resolution video at up to 30 fps. A 2.8x variable magnification optical zoom is controlled remotely through the viewing software via an OSD virtual touch pad. The camera supports up to six simultaneous streams at different resolutions, frame rates, bit rates, and image quality. This hybrid camera features digital Ethernet and analog BNC video outputs which increases its usability with analog DVRs and monitors, or NVRs and NAS. There are audio in/out terminals to connect an external microphone and speakers, or to wire into a PA system, for two-way communication. Alarm in/out terminals enable it to be wired into an alarm/fire panel. Peripherals such as door/window contacts, PIRs, or smoke detectors can be directly connected to trigger event recording. Install sirens or relays on the alarm-out terminal to activate when alarms are tripped. Multiple recording options including motion-detection and alarm-event, allow you to tailor the files you capture based on your needs.
Connect to the camera from most web browsers, including Internet Explorer, Firefox, Chrome, and Safari. All features and functions can be accessed, including administrative use and PTZ control. Multiple users, with individual passwords, can be granted access with various security levels from live-view only to full administrative permissions.
The camera is ONVIF compliant, so it will work with compatible equipment from a wide array of manufacturers that are ONVIF members.
SPECIFICATIONS
Image Sensor | 1/2.8" 3MP color CMOS |
Pixels | Total: 2144 x 1588 Effective: 2096 x 1561 |
Lens | f/1.2 3 to 8.5 mm vari-focal Angle of view: 100 to 26° |
Resolution | 3M Mode: 2M Mode: |
Compression | Video: H.264/MJPEG Audio: G.711 u-law |
Minimum Illumination | Color: 1 lux B/W: 0.08 lux |
Signal to Noise Ratio | 50 dB |
Network | RJ-45 10/100 Ethernet port |
Network Protocols | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, ONVIF |
Audio I/O | 1 x Microphone/line-in port 1 x Line-out port |

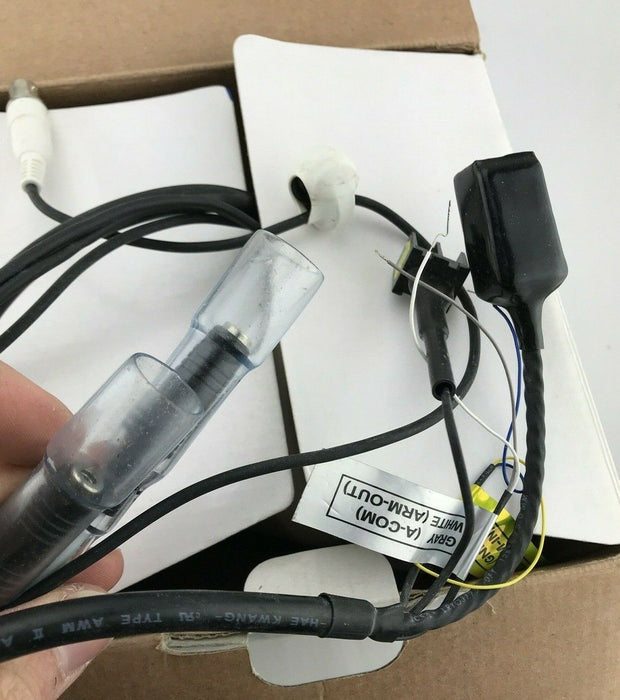

Alarm I/O | 1 x Input terminal 1 x Output terminal |
Memory Card | SD/HC, up to 32 GB |
Power | 12 VDC 24 VAC Power-over-Ethernet IEEE802.3af |
Environmental | Operating temperature: 14 to 122° F (-10 to 50° C) Humidity: 20 to 80%, non-condensing |
Dimensions | 5.2 x 5.1" (13.3 x 12.9 cm) |
Weight | 24.7 oz (700 g) |
