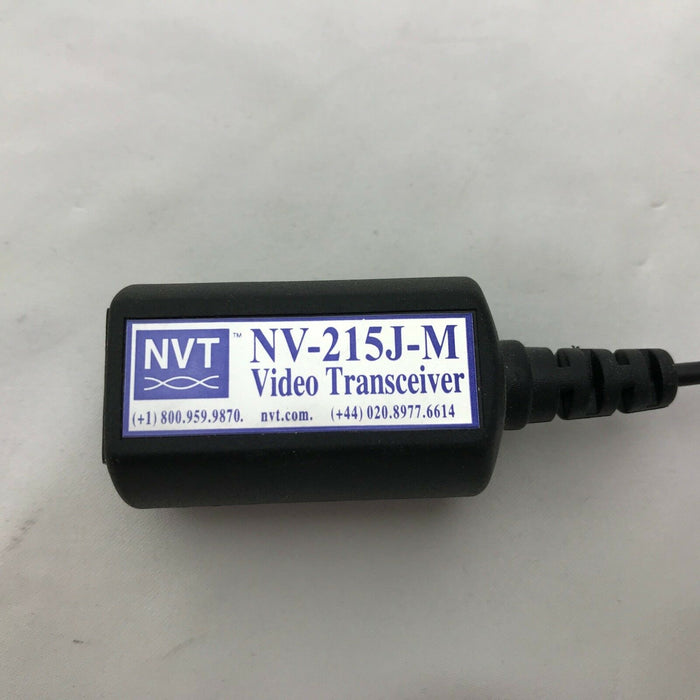

NVT INC. NV-215J-M Twisted-Pair Video UTP Transceiver for CCTV NEW!
- Access control systems including intercoms
- HD video security camera systems with analog or IP technology
- Smart City planning and infrastructure
- IoT options for Z-Wave, Bluetooth Mesh, Zigbee, WIFI
- WIFI data systems for campus environments, Multi-Tenant Dwelling Units (MDU), Hotels
- Building automation including LED lighting control
- Oil and Gas solutions including explosion-proof cameras, industrial networking
- Power solutions such as solar, wind turbines, and PoE.
When used in conjunction with any passive NVT transceiver or hub, the video transceiver can transmit full-motion CCTV video at a distance up to 750' (225m). With any StubEQ hub, the unit can transmit up to 1500' (460m) whereas with a DigitalEQ hub or NVT active receiver, it can transmit up to 3000' (1000m).

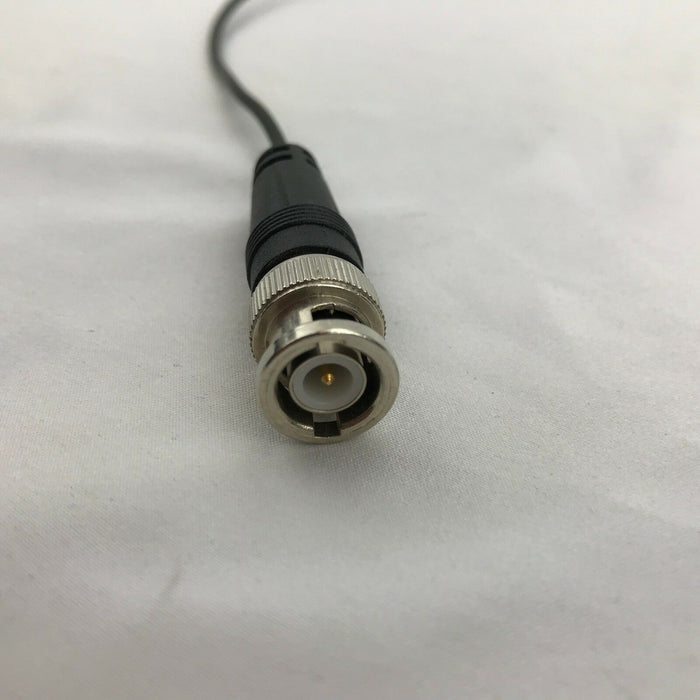

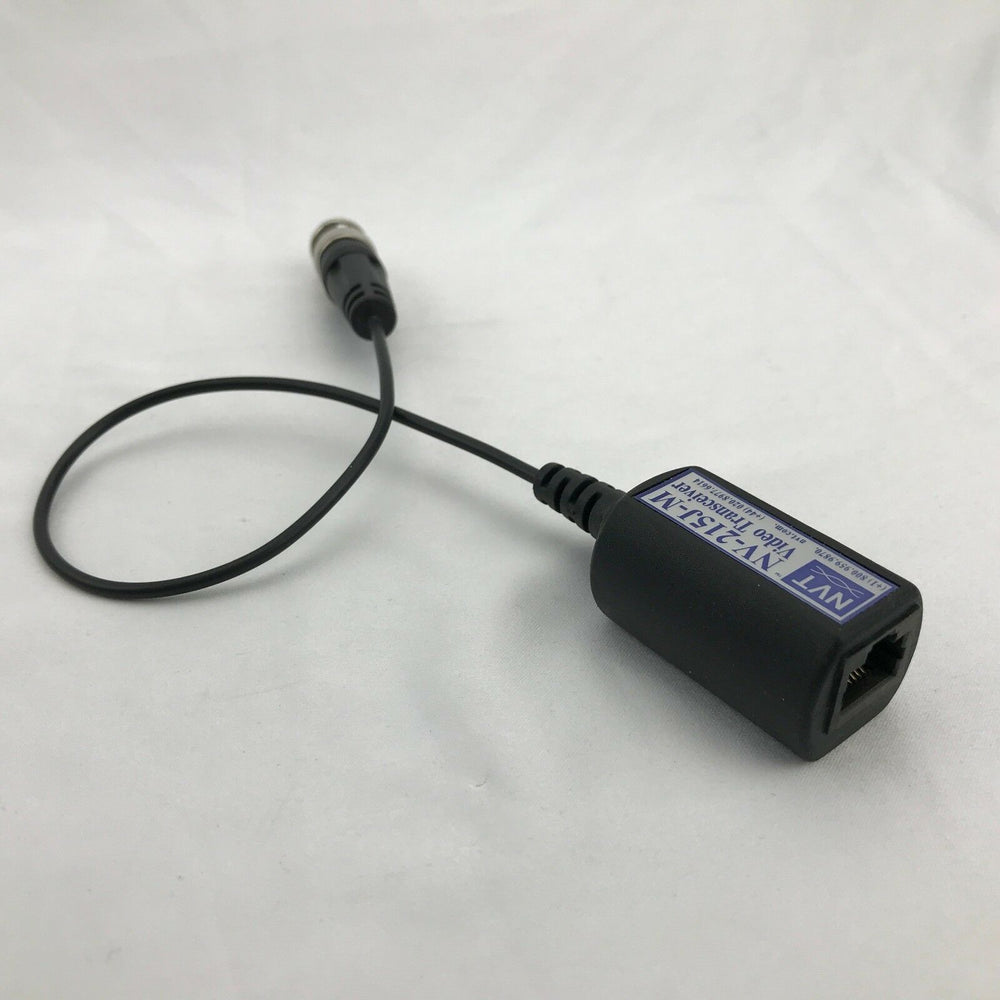

The passive NV-215J-M is equipped with a 9" mini-coax pigtail lead to support in-camera mounting in most dome cameras and offers a RJ-45 pin for connection to Cat 5 wire. When used with any Active NVT Receiver, the transceiver is capable of delivering a fully equalized signal to the DVR.
The built-in transient protection eliminates the need for a ground screw. Interference rejection and low emissions allow the video and low voltage power circuits to be placed within the same wire bundle, thus allowing the use of shared or existing cable plant.
Without any added power requirements, the passive NVT Video Transceiver can send video. It has a DC frequency response up to 10MHz.
Allows real-time monochrome or color video to be transmitted over a Cat 5 wire
Supports any type of baseband (composite) signals and offers wide compatibility for transmission media
When used in conjunction with any passive NVT transceiver or hub, the video transceiver can transmit full-motion CCTV video at a distance up to 750' (225m)
With any StubEQ hub, the transceiver can transmit up to 1500' (460m)
With DigitalEQ hub or NVT active receiver, the maximum distance that can be transmitted is 3000' (1000m)
9" mini-coax pigtail lead supports in-camera mounting in most dome cameras
RJ-45 terminal for connection to Cat 5 wire
When used with any Active NVT Receiver, the transceiver is capable of delivering a fully equalized signal to the DVR
Built-in transient protection eliminates the need for a ground screw
Interference rejection and low emissions allow the video and low voltage power circuits to appear within the same wire bundle
Frequency response ranges from DC to 10MHz
No additional power requirements
