Hikvision DS-KB8112-IM 1.3MP IP Video Doorbell Vandal Proof PoE I/O
by Hikvision
Sold out
$120.00
SKU DS-KB8112-IM_USED
Hikvision DS-KB8112-IM 1.3MP IP Video Intercom Vandal-Resistant Doorbell Station

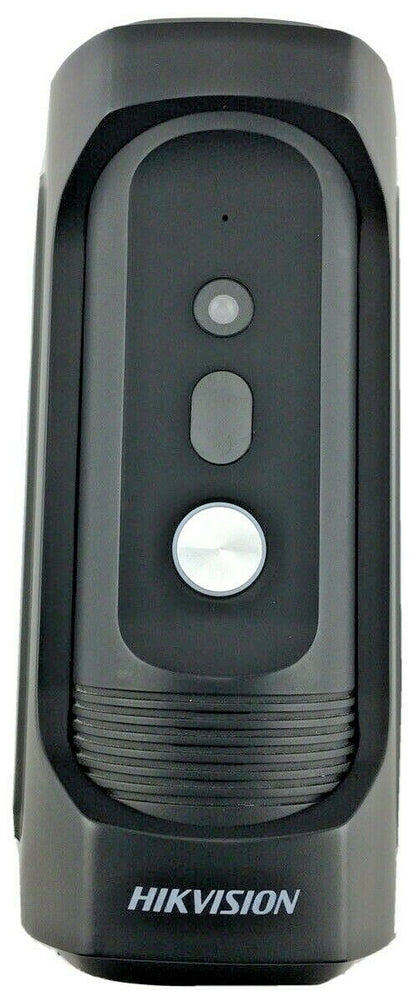

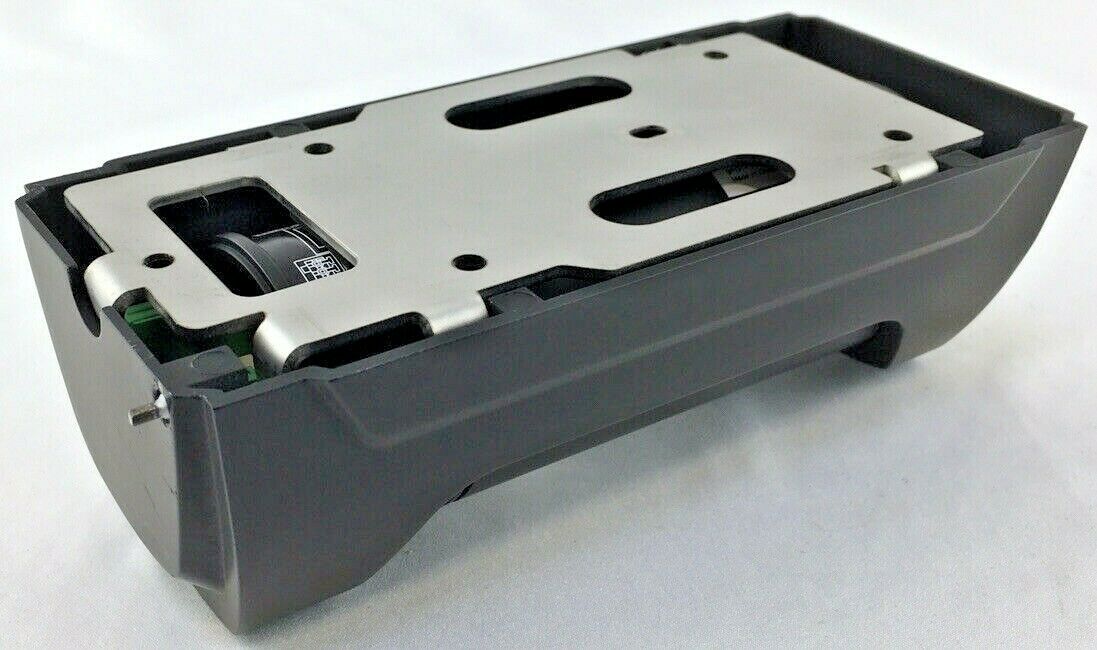

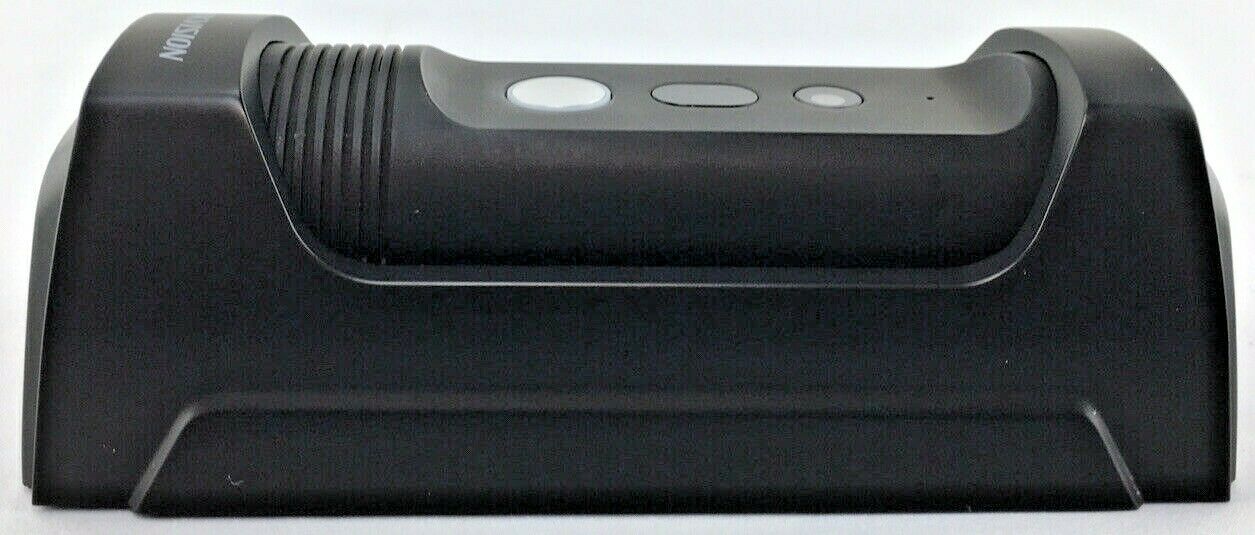

Grade A-/B+ physical condition. Comes as pictured.
OVERVIEW
- IP Vandal-resistant Door Station
- 1.3 MP, with view adjustment and IR Supplement
- 1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
- PoE (Power over Ethernet)12 VDC
- Metal frame with one physical button, IK 9 and IP 66
- Access control function supported
- 1/3" Progressive Scan CMOS, Color, Day/Night
SPECIFICATIONS
- Network Parameters
- Ethernet10/100 Mbps Self-Adaptive Ethernet
- Network ProtocolRTSP, RTP, NTP, HTTP, HTTPS, DHCP, FTP, SMTP
- Network Connection ModeDHCP, Static IP Address
- Door-Unlocked Duration1 s to 255 s
- General
- MaterialWall Mounting Shield: Zinc Alloy Front Panel: Zinc Alloy Rear Panel: Aluminum Alloy Wall Mounting Plate: Secc
- Power SupplyPoE (Power over Ethernet)
- Working Temperature-30° C to +50° C (-22° F to 122° F)
- Ingress Protection LevelIP 66
- Video Management SoftwareVideo management software from HIKVISION. For more information, see http://www.hikvision.com/us/Tools_84.html
- Impact ProtectionIK 9
- Power ConsumptionMax. 12 W
- Dimensions (L X W X H)161.9 mm × 74.1 mm × 53.2 mm (6.37" × 2.92" × 2.09")
- Weight773g (1.70lb)
- Working Humidity10% to 90%
- Audio Parameters
- Audio StreamingTwo-Way, Full Duplex
- Audio InputBuilt-in Omnidirectional Microphone
- Audio OutputBuilt-in Loudspeaker
- Audio Compression StandardG.711 U
- Audio Compression Rate64 Kbps
- Audio QualityNoise Suppression and Echo Cancellation
- Video Parameters
- Video Compression StandardH.264
- Video StreamingDual Stream
- ResolutionMain Stream: 1280 × 720 Sub-Stream: 640 x 480
- Video Frame RatePAL: 25 fps, NTSC: 30 fps
- Video Bit RateMain Stream: 32 Kbps to 4096 Kbps Sub-Stream: 32 Kbps to 2048 Kbps
- Anti-Flicker Frequency50 Hz, 60 Hz
- Wide Dynamic RangeDigital WDR, Auto-Switch, DAY/ON, NIGHT/OFF
- Field Of View80°(Horizontal), 44°(Vertical)
- Image SettingsColor, Brightness, Contrast, Sharpness, Saturation, Video Standard, OSD Display
- System Parameters
- Operation SystemEmbedded Linux Operation System
- ProcessorHigh-Performance Embedded SOC Processor
- Event Actions
- EventMotion Detection, Picture Capturing, Call Button Pressing
- File UploadingFTP
- Email NotificationLogin Succeeded via Software or Web
- Camera Parameters
- Image Sensor1/3" Progressive Scan CMOS, Color, Day/Night
- Light SensitivityLow Illumination
- LensPinhole, f3.47mm,F2.5
- Field Of View Adjustment-50°to 50°
- Alarm Parameters
- Alarm InputDoor Magnetic Alarm

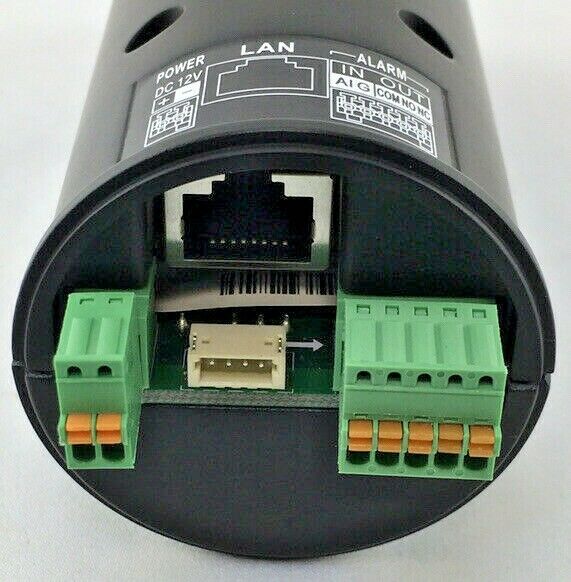

- Device Interfaces
- I/O Input1
- I/O Output1 Relay Output
- Network Interface1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
- Light Supplement
- Light Supplement ModeIR Supplement, IR Distance: 5 Meters
- Wavelength940 nm
- ControlAuto ON/OFF, Time ON/OFF
