High Speed HDMI Cable 4K w/ Ethernet & Rotating Connectors 6ft Legrand C2G 40111
by C2G
Sold out
$15.00
SKU 40111
High Speed HDMI Cable 4K w/ Ethernet & Rotating Connectors 2m Legrand C2G 40111

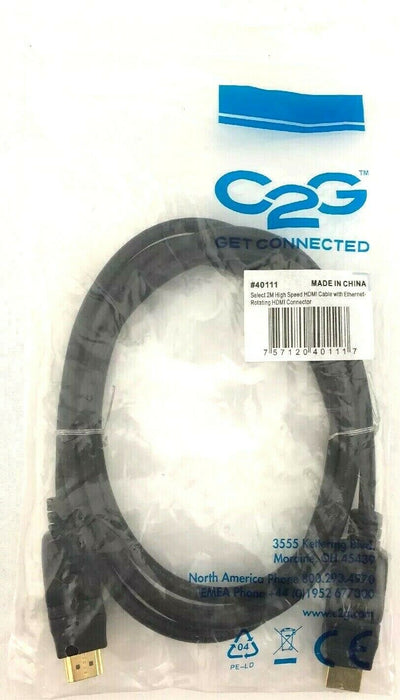

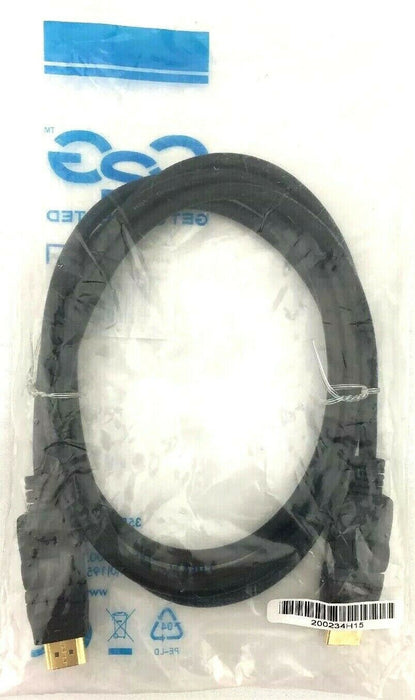

Brand new in original packaging.
Description/Features
The High Speed HDMI Cable with Ethernet and Rotating Connectors supports all HDMI 1.4 features and is the perfect solution for connecting a multimedia source device to a display. The Ethernet capabilities of the cable allow a user to connect multiple Ethernet enabled HDMI devices through a single Ethernet connection for accessing interactive online content or updating device firmware. The rotating connectors on this cable allow it to be installed in tight spaces for support of a wall mounted HDTV. Experience the latest HDMI features including:
• 4K (2160p), which is 4 times the clarity of 1080p/60 video resolution
• 3D video, Deep Color and x.v. Color™
• Dolby® True HD, DTS-HD Master Audio and up to 32 audio channels for a multi-dimensional immersive audio experience
• Up to 1536kHz audio sample frequency for the highest audio fidelity
• Simultaneous delivery of dual video streams to multiple users on the same screen
• Simultaneous delivery of multi-stream audio to multiple users (up to 4)
• Support for the wide angle theatrical 21:9 video aspect ratio
• Dynamic synchronization of video and audio streams
• CEC extensions for control of consumer electronics devices through a single control point
High quality materials and construction ensure a lifetime of dependable performance. Fully-shielded conductors provide complete immunity to EMI/RFI interference, and 24-karat gold-plated connectors ensure superior signal transfer. This fully-functional, high-bandwidth cable is tested to perform at industry standards.
Specifications
Color: Black
Length: 2 Meters (6.6 Feet)
Jacket Rating: Standard Non-Rated
UPC: 757120401117
Original Vendor: C2G
Weight: 0.263 LB
HDMI Specification: 1.4
Electrical Characteristics
• Nominal Impedance - 100 ± 10Ω
• Nominal Capacitance - 90pF/m
• Nominal Velocity of Propagation - 5.6ns
• DC Resistance - 376.96MΩ/km
• Dielectric Strength - AC 500V - 1 minute
• Insulation Resistance - 100MΩ
Physical Characteristics
• Voltage Rating - 30V
• Minimum Bend Radius - 9.0mm
• Temperature Rating - 80°C
• Temperature Range - 0° - 80°C
• Approvals - RoHS Compliant
• Warranty - Lifetime
• Package Type - Polybag
Conductor 1 (5pair)
• Conductor Type - 30AWG (1/0.254), Tinned Copper
• Insulation - Foamed PE + SKIN, Red/White, Brown/White, Blue/White, Green/White, Black/White, O.D. - 0.65mm
• Drain Wire - 30AWG (1/0.254), Tinned Aluminum
• Shield - Foil, 100% Coverage
Conductor 2 (4 conductors)
• Conductor Type - 30AWG (1/0.254), Tinned Copper
• Insulation - HDPE, Yellow, Red, Green, Purple, O.D. - 0.70mm
Connector
• Connector Type: HDMI® - Type A Rotating
• Pin Construction: Copper
• Plating: 15µm Gold
• Insulation: PBT + 30% Glass Fiber
• Hood - ABS, Black
• Dimensions (HxWxL) - 9.7 x 21.1 x 57.8mm
• Connector Depth at 90° - 30.4mm
• Connector Height at 90° - 49.4mm
Overall Cable
• Drain Wire - 30AWG (1/0.254), Tinned Aluminum
• Foil Shield - Aluminum, 100% Coverage
• Braided Shield - 16/8/0.10, Tinned Aluminum, 85% Coverage
• Jacket - PVC, Black, O.D. - 6.0mm
