Extron IN3252HR Two Output RGBHV Distribution Amplifier BNC In/Output 60-681-01
Grade B physical condition.Has a small dent, but otherwise in great condition. Comes as pictured. Power supply included.
Overview

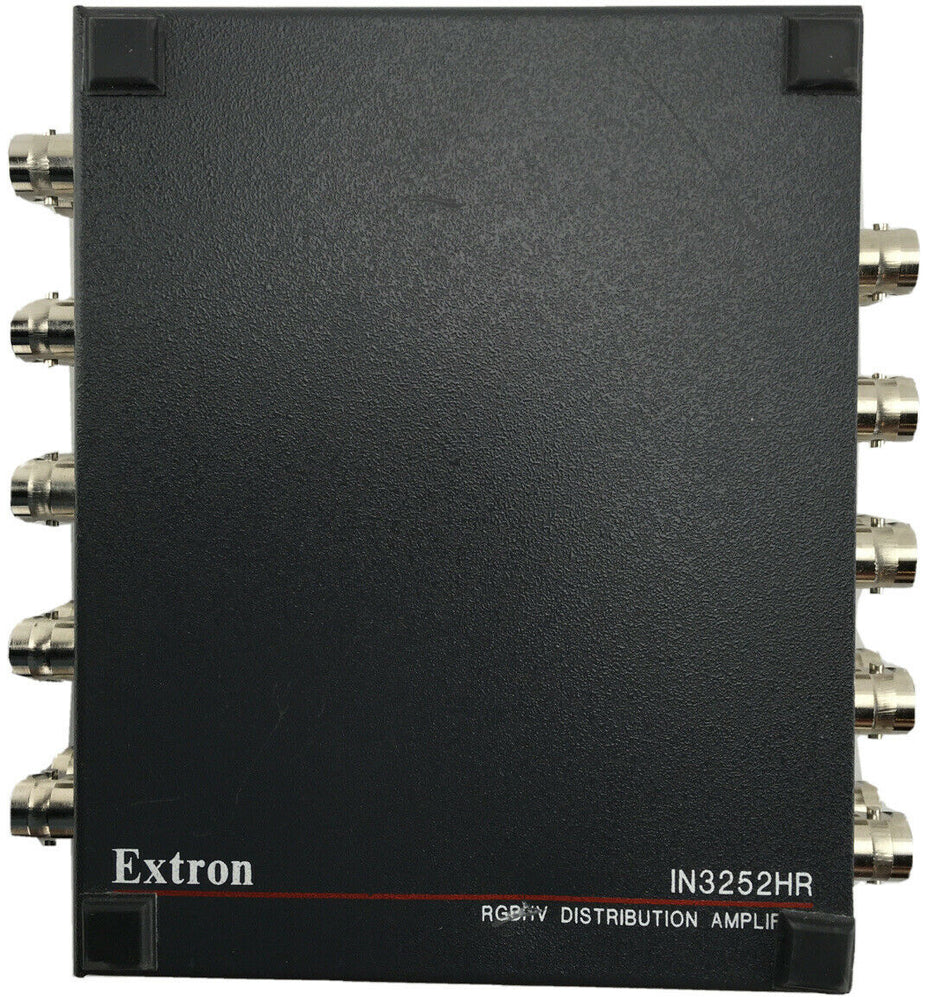

The Extron IN3252HR is a high performance RGBHV distribution amplifier. This DA includes one input and two outputs on BNC connectors. A video loop-through output on five BNC connectors provides a passive loop-through signal. This enables the ability to loop through to additional amplifiers to create a larger DA system or to drive a local monitor.

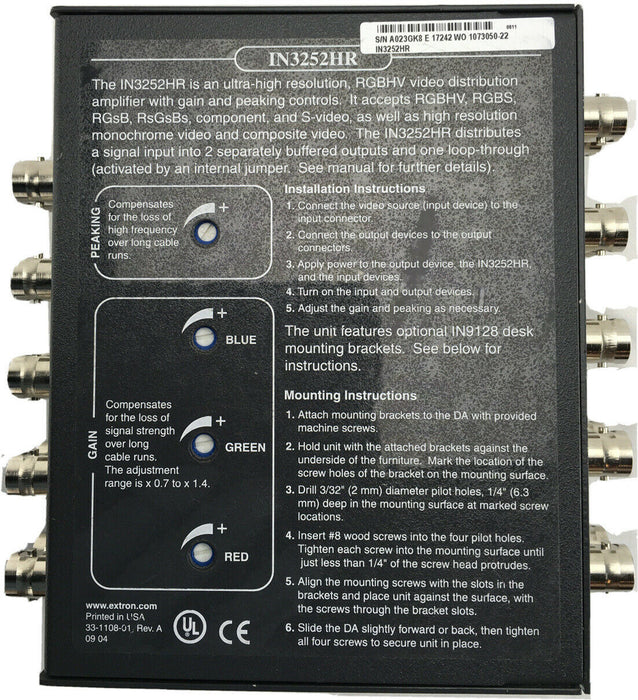

The IN3252HR features individual gain controls for red, green, and blue, which allows for gray scale adjustment and boosts the signal to compensate for the losses in level caused by lengthy cable runs. Proper gain control adjustment can improve image contrast. A single RGB peaking/sharpness adjustment compensates for high frequency loss.
The IN3252HR offers flexible video distribution/line driving capabilities to suit a wide variety of applications including boardrooms, training facilities, home theater, command and control centers, and rental and staging environments. The IN3252HR is housed in a compact and durable metal enclosure, and is surface-mountable using optional L-brackets, part # 70-490-01.
Features
- Input: One set of female BNC connectors

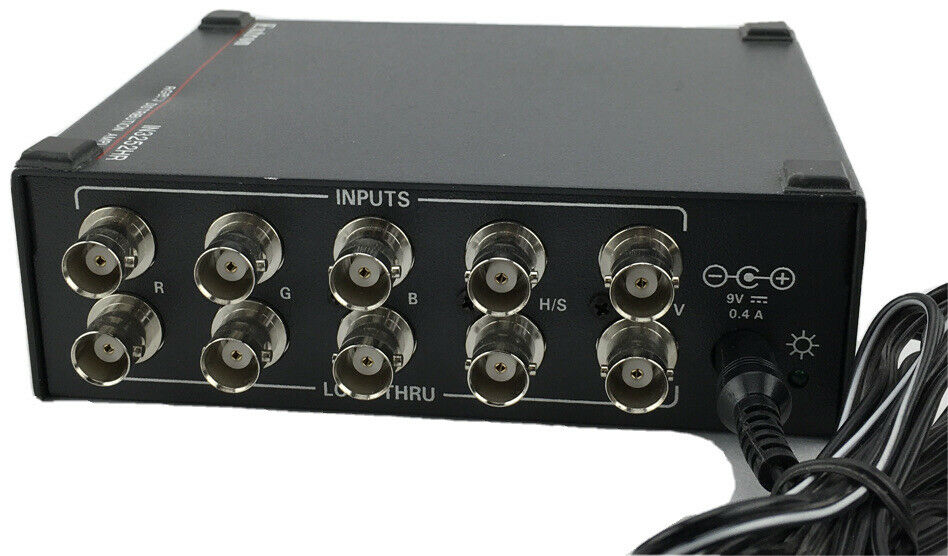

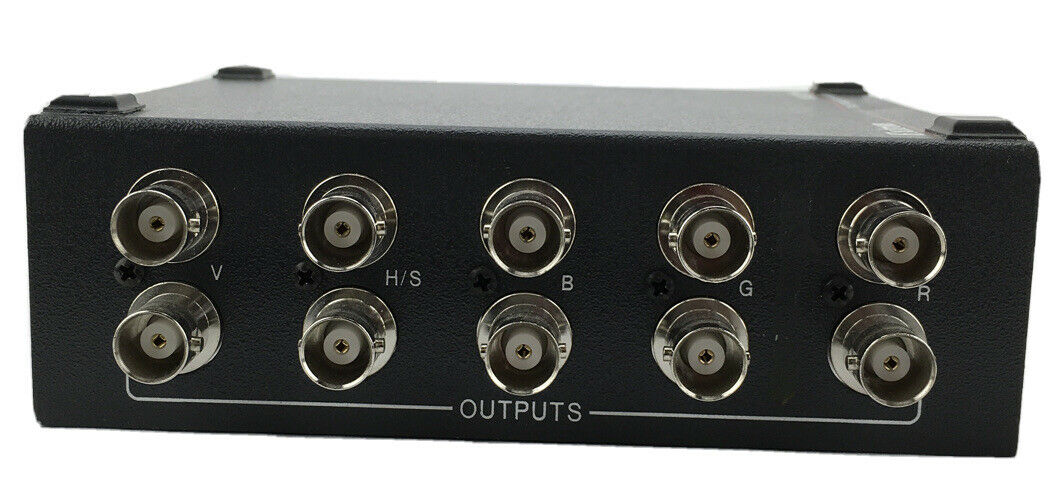

- Outputs: Two sets of female BNC connectors plus one set for passive input loop-through
- 400 MHz (-3dB) video bandwidth, fully loaded
- Compatible with RGBHV, RGBS, RGsB, RsGsBs, component, high resolution monochrome video, S-video, and composite video signals
- Gain and peaking/sharpness adjustments
- Video loop-through
- Durable, metal enclosure
- Surface mountable using optional L-brackets, part # 70-490-01
- Highly reliable, energy-efficient external universal power supply included, replacement part #70-777-01 — Provides worldwide power compatibility, with high demonstrated reliability and low power consumption for reduced operating costs.
| Video | |
|---|---|
| |
-3 dB to +3 dB (0.7 to 1.4), adjustable |
| |
0 to +6 dB @ 100 MHz |
| |
400 MHz (-3 dB) |
| Video input and loop through | |
| |
1 RGBHV, RGBS, RGsB, RsGsBs, HDTV component video, S-video, composite video input 1 RGBHV, RGBS, RGsB, RsGsBs, HDTV component video, S-video, composite video passive loop-through |
| |
2 x 5 female BNC |
| |
1.0 Vp-p for Y of component video and S-video, and for composite video 0.7 Vp-p for RGB and for R-Y and B-Y of component video 0.3 Vp-p for C of S-video |
| |
Analog: 0.3 V to 1.5 Vp-p with no offset at unity gain |
| |
75 ohms (default) or Hi-Z (selectable) |
| |
<-40 dB @ 5 MHz |
| |
AC/DC, jumper selectable |
| Video output | |
| |
2 RGBHV, RGBS, RGsB, RGBcvS, HDTV component video, S-video, composite video (follows input type) |
| |
2 x 5 female BNC |
| |
1.0 Vp-p for Y of component video and S-video, and for composite video 0.7 Vp-p for RGB and for R-Y and B-Y of component video 0.3 Vp-p for C of S-video |
| |
0.3 Vp-p to 1.5 Vp-p (follows input) |
| |
75 ohms |
| |
<-40 dB @ 5 MHz |
| |
±100 mV with input at 0 offset |
| Sync | |
| |
RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync |
| |
RGBHV, RGBS, RGsB, RsGsBs, bi-level and tri-level sync |
| |
2.0 V to 5.0 Vp-p |
| |
TTL: 5.0 Vp-p, unterminated |
| |
510 ohms |
| |
50 ohms |
| |
40 ns |
| |
9 ns |
| |
Positive or negative (follows input) |
| General | |
| |
100 VAC to 240 VAC, 50-60 Hz, external; to 9 VDC, 1 A, regulated |
| |
9 VDC, 0.2 A |
| |
Storage -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
| |
Convection, no vents |
| |
|
| |
Yes, with optional mounting brackets |
| |
Metal |
| |
1.6" H x 5.25" W x 4.4" D (4.1 cm H x 13.3 cm W x 11.2 cm D) (Depth excludes connectors.) |
| |
1.0 lbs (0.5 kg) |
| |
3 lbs (2 kg) |
| |
ISTA 1A in carton (International Safe Transit Association) |
| |
|
| |
CE, c-UL, UL |
| |
CE, C-tick, FCC Class A, ICES, VCCI |
