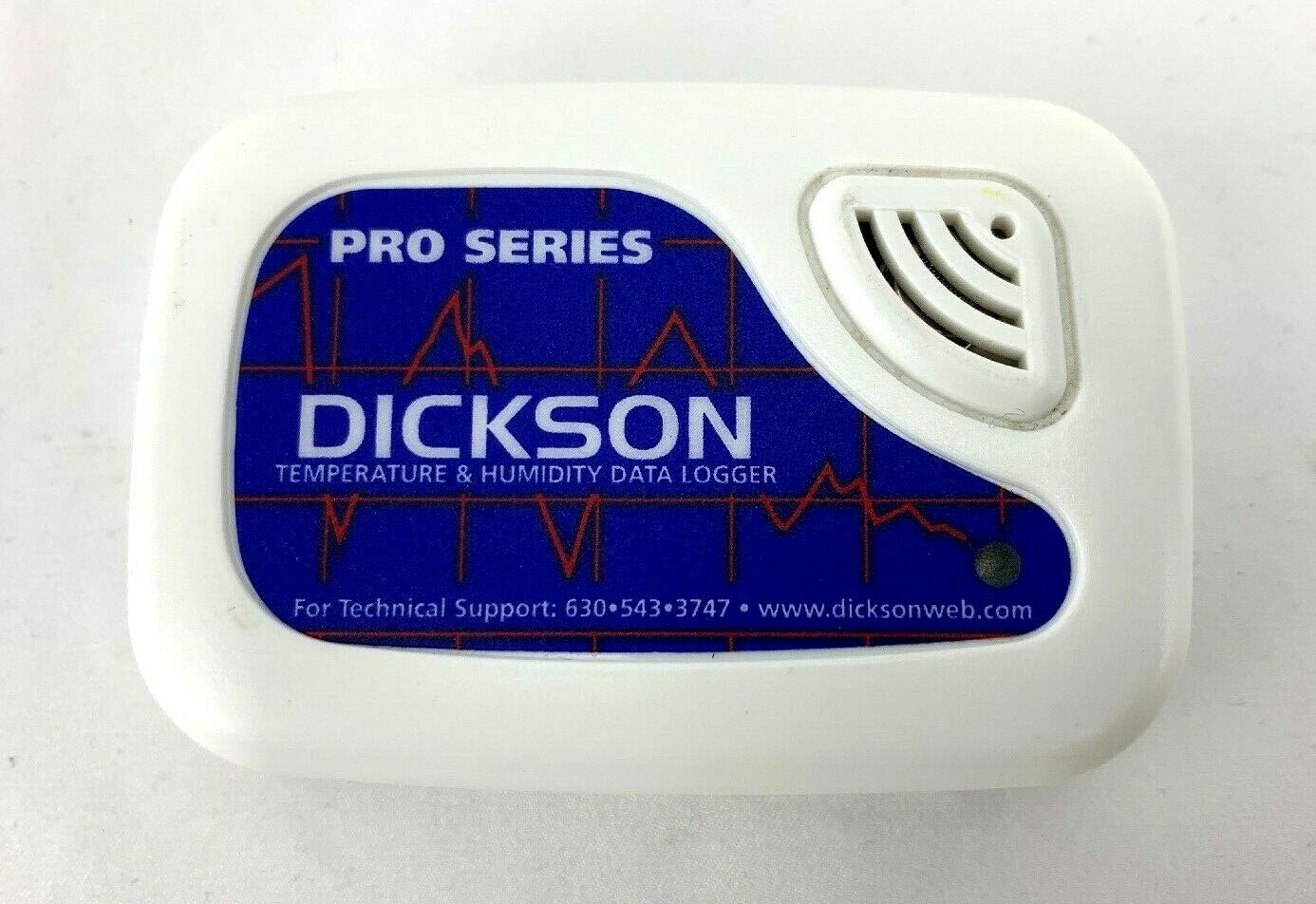

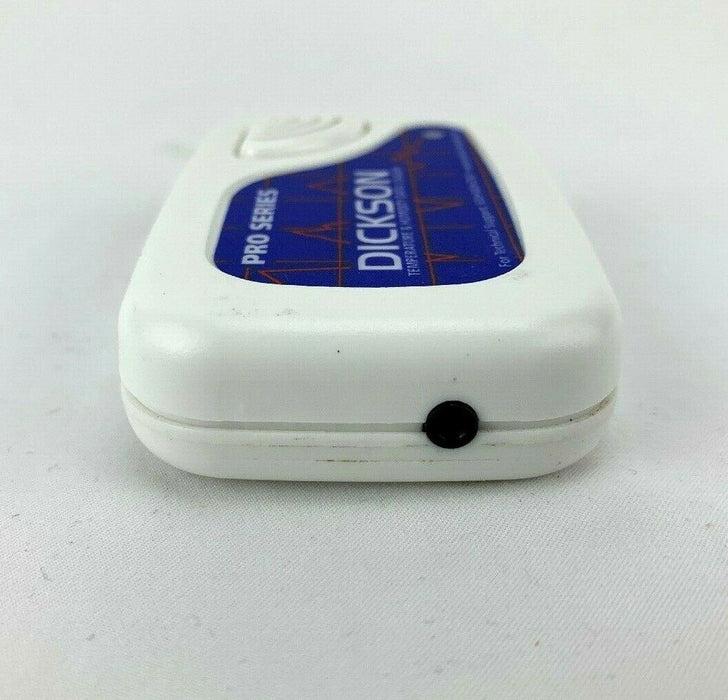

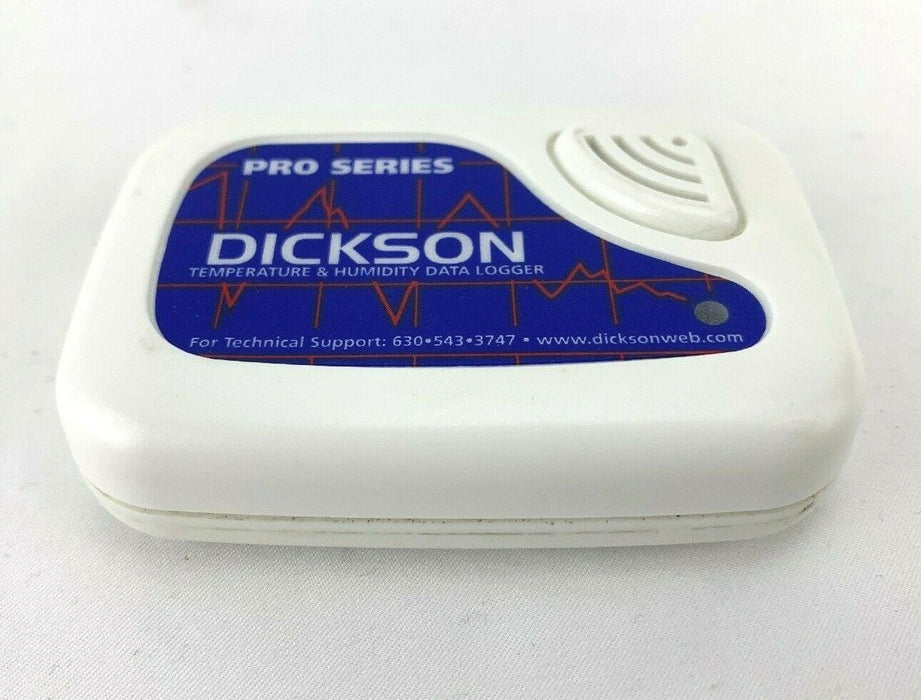

Dickson Pro Series TP120 Temperature & Humidity Data Logger
Dickson Pro Series TP120 Temperature & Humidity Data Logger

Dickson Pro Series TP120 Temperature & Humidity Data Logger

by Dickson
$39.99 USD
SKU TP120_USED



The Dickson Pro Series Data Loggers take data acquisition to the next level with 5-year battery life, data storage capacity of 32,512 samples and our best accuracy specifications. The TP120 is a self-contained, temperture & humidity Data Logger equipped with internal sensors for recording temperature and humidity. User friendly DicksonWare software creates a graph of your data in seconds. DicksonWare features include complete customization of your graph, zooming, and viewing your data in tabular format. You can also view data from several loggers on a single graph enabling easy comparison of multiple sets of data. Transferring the data into documents or spreadsheets is a snap!
  • Battery Operation - 5 year battery life
  • Stores 32,512 Sample Points
  • Temperature Range -40 to +176°F (-40 to +80°C)
  • Humidity Range 0 to 95% RH (non-condensing)
  • "Unit On" LED Indicator
  • 2% RH Accuracy

  • Temperature Range: -40 to +176°F, -40 to +80°C
  • Temperature Sensor: Digital temperature sensor
  • Temperature Accuracy:>±1.8°F(±1°C) over range +14 to +176°F (-10 to +80°C); ±3.6°F(±2°C) over range +14 to -40°F (-10 to -40°C)
  • Humidity Range: 0 - 95% RH (non-condensing)
  • Humidity Sensor: Monolithic Humidity Sensor
  • Humidity Accuracy: ±2% at 40% RH and +73°F (+23°C) ±4% over range 0 to 95% RH at +41 to +122°F (5 to +50°C)
  • Resolution:Internal Temperature Sensor: 0.1°F (0.1°C) Internal Humidity Sensor: 0.1% RH
  • Power Source: Lithium CR-2477 3V (Factory Replaceable)
  • Battery Life: 5 Years typical @ 1 minute sample intervals
  • PC Software Features:Windows™ based, variable sample interval, data wrap-around, viewing data, graphing and zooming
  • Data Capacity: Single Channel - 32,512 sample points Dual Channel - 16,256 sample points per Channel
  • Sample Interval:Variable from 10 seconds to 24 hours in 10 sec increments
  • Response Time:10 minutes to move 63% of full scale (temperature) and 15 minutes to move 63% of full scale (humidity)
  • Download Time: 3 minutes, typical with logger full
  • Power Status: LED - Flashes when full
  • Ambient Operating Range: -40 to +176°F (-40 to +80°C) 0 -95% RH (non-condensing)
  • Approvals:CE
  • Dimensions: 3.13" x 2.14" x 0.87" (79mm x 54mm x 22mm)
  • Memory: Non-volatile
  • Calibration: User: Zero Pt w/SW400 Software; Factory: Zero Pt. and Span
  • Enclosure: Polycarbonate
  • Weight: 1.8 oz (49g)
  • A015 - DicksonWare & Download Cable Specifications
  • Software: Microsoft 95, 98, 2000 and NT compatible
  • PC Requirements: PC w/386 or better micro processor, 4M RAM, 1 free COM (Serial) port, CD drive
  • Version Required (Minimum): 5.0.14
  • Cable Type/Length: 9 pin male D-shell to male 2.5mm sterio plug, 6 feet long
  • Computer Interface: RS-232 COM (Serial) port Note: A015 must accompany the initial purchase of the TP120 in order to operate.
