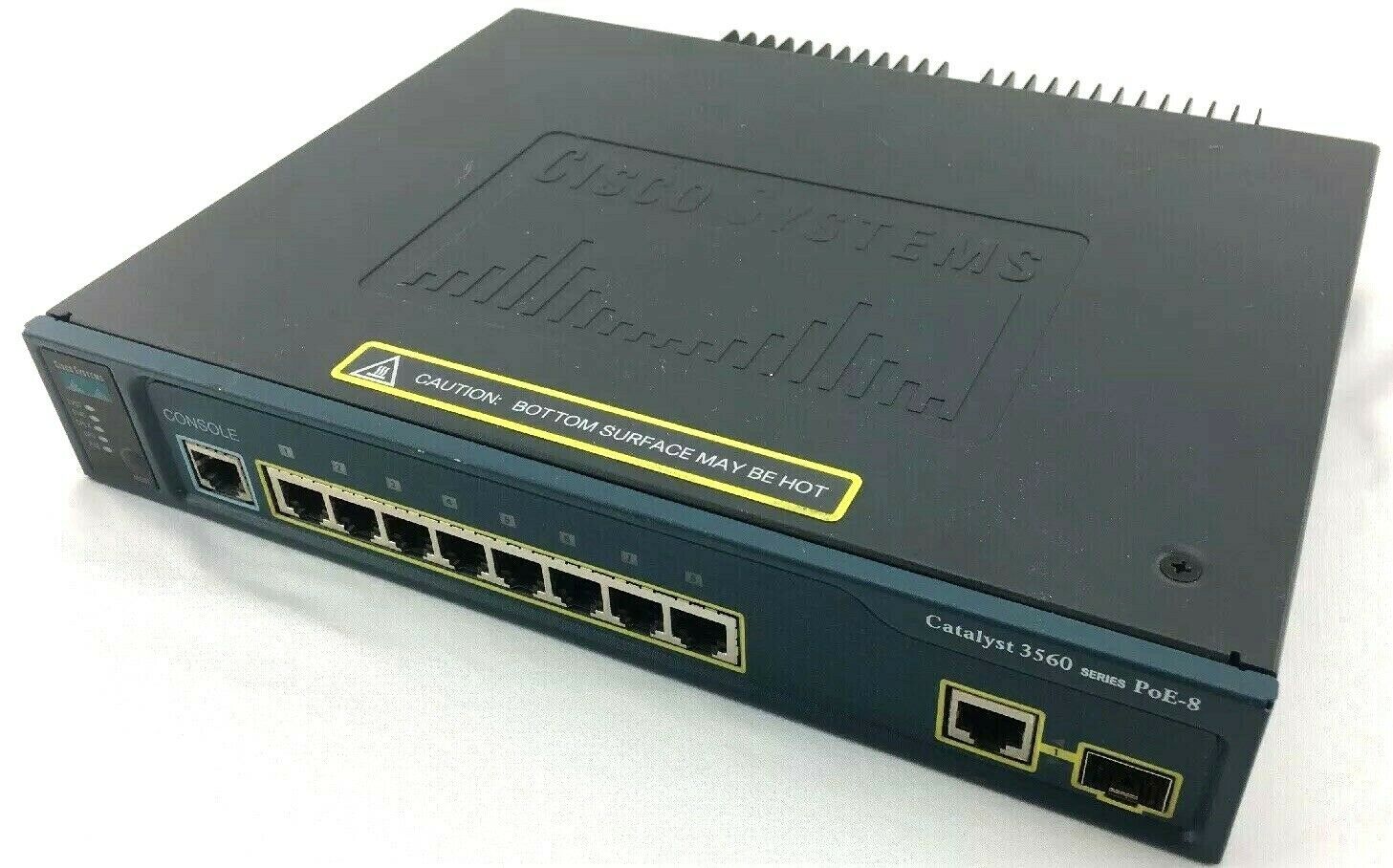

Cisco Catalyst WS-C3560-8PC-S V01 8-port Managed Gigabit Ethernet Network Switch
by Cisco
Sold out
$70.00

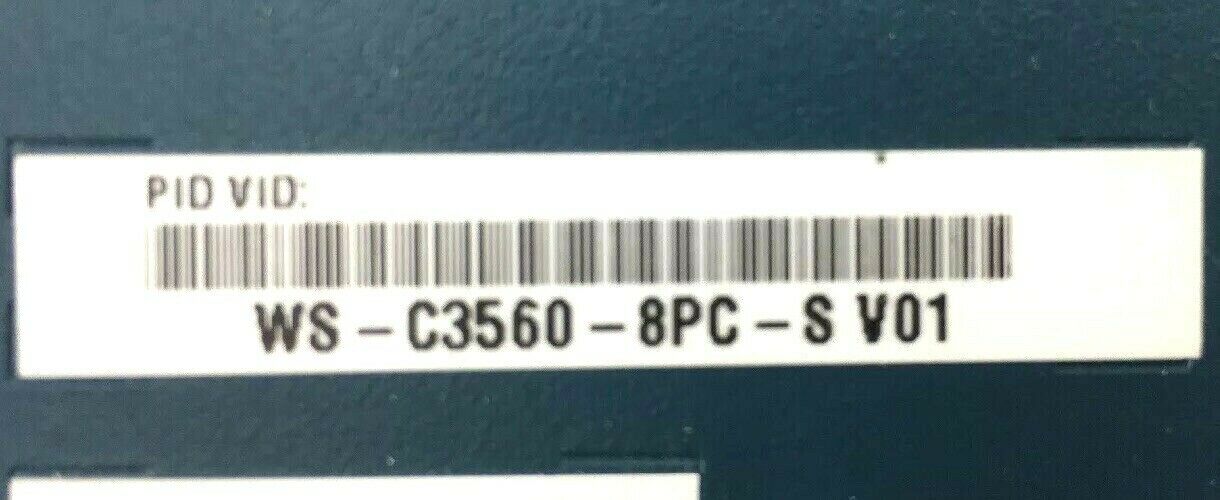

SKU WS-C3560-8PC-S_USED
Cisco Catalyst WS-C3560-8PC-S V01 8-port Managed Gigabit Ethernet Network Switch
Cisco Catalyst WS-C3560-8PC-S V01 8-port Managed Gigabit Ethernet Network Switch
Overview
Cisco Catalyst 3560 Series is a line of fixed-configuration, enterprise-class switches that include IEEE 802.3af and Cisco prestandard Power over
Ethernet (PoE) functionality in Fast Ethernet and Gigabit Ethernet configurations. The Cisco Catalyst 3560 is an ideal access layer switch for small
enterprise LAN access or branch-office environments, combining both 10/100/1000 and PoE configurations for maximum productivity and
investment protection while enabling the deployment of new applications such as IP telephony, wireless access, video surveillance, building
management systems, and remote video kiosks.

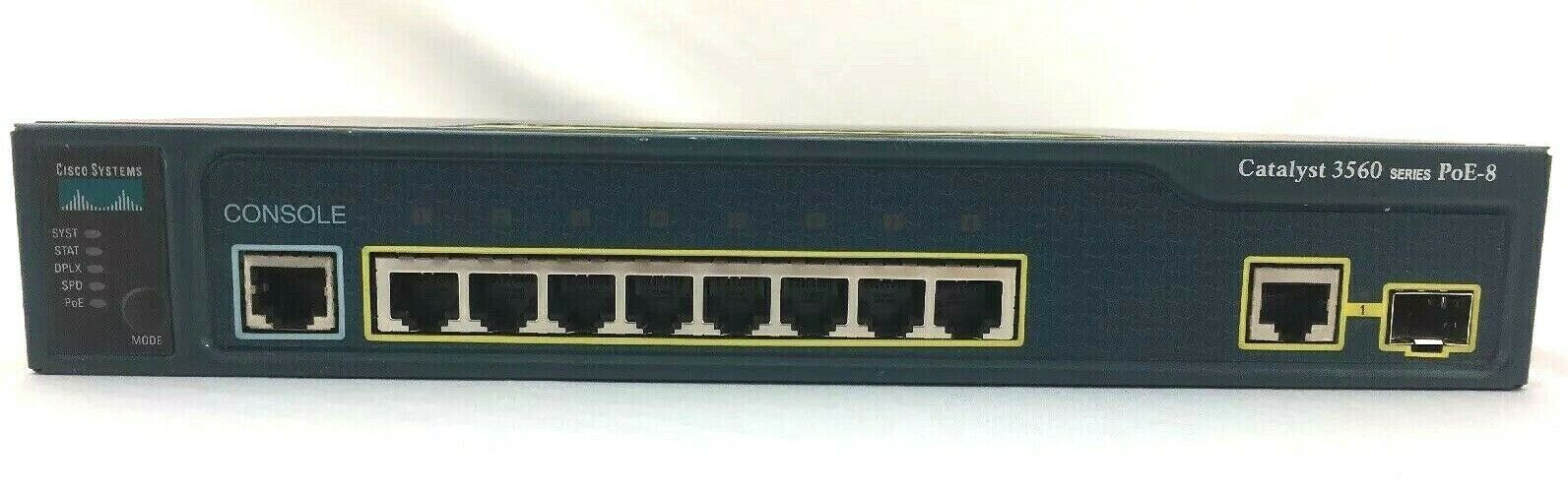

• 8 Ethernet 10/100 ports and 1 dual-purpose 10/100/1000 and SFP port

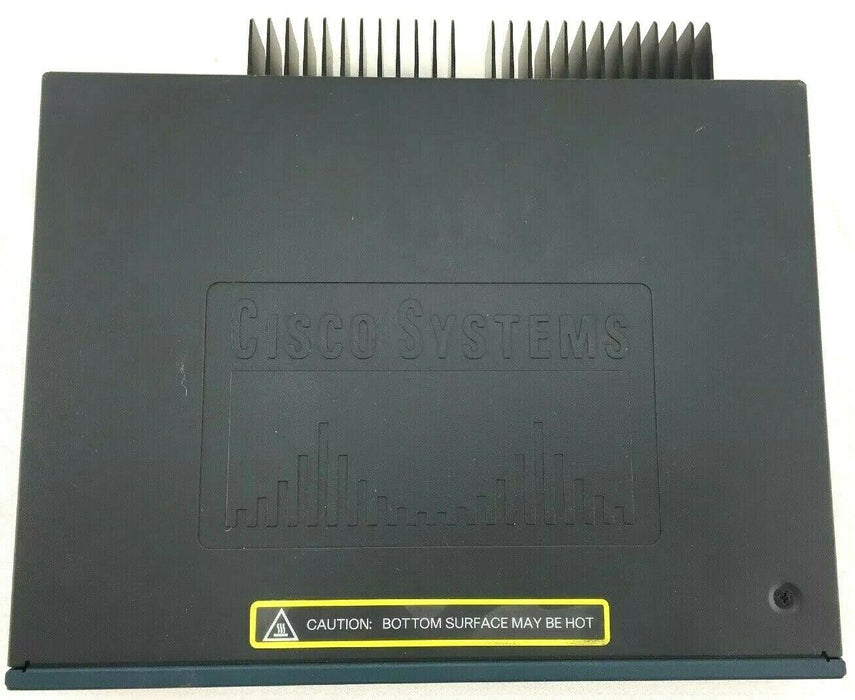

• Compact form-factor with no fan
• Enterprise-class intelligent services delivered to the network edge
• IEEE 802.3af and Cisco prestandard Power over Ethernet
• IP Base software feature set (IPB)
Specifications
Type
Fixed
Topology
Ethernet (10/100BaseTX)
Ethernet (10/100/1000 Ethernet PortsBaseT)
Gigabit Ethernet (SFP)
Maximum Port density
8 10/100 PoE ports
Uplinks
1 dual-purpose (10/100/1000 Ethernet Ports or SFP) ports
Modular/Expansion Slots
n/a
Architecture
Layer 2 Switching (basic connectivity), Layer 2 Switching (intelligent services), Layer 3 Switching,
Voice Enabled
Form Factor
Fixed, Rack Mountable, Standalone/Clustering
Dimensions
1.73 x 10.6 x 9.1 in.
DRAM
128 MB
Features
Specialized Service Modules
n/a
Security
DHCP Snooping ✔
Dynamic ARP Inspection ✔
IP Source Guard ✔
RP Rate Limiters
TCP Intercept
802.1x ✔
Port Security ✔
Dynamic VLANs ✔
Private VLANs ✔
Private VLAN Edge ✔
Secure Shell ✔
SNMPv3 ✔
Unicast RPF
ACLs (L2-L4) ✔
Kerberos ✔
TACACS+ ✔
RADIUS ✔
High Availability/Resilliency
Hardware Redundancy
n/a
High Availability/Resilliency
PVST, Broadcast Suppression, Unicast Suppression, Mulitcast Suppression, Spanning Tree, Portfast,
Uplink Fast, Backbone Fast, 802.1s, 802.1w, HSRP
Management
Management features
SPAN, RSPAN, CiscoView, Cisco Discover Protocol (CDP), Virtual Trunking Protocol (VTP), Telnet Client,
BOOTP, TFTP, CiscoWorks, CWSI, RMON, SNMP, Clustering, Web-Based Management
Scalability
WAN Interface Support
n/a
Throughput
2.7 Mpps
Backplane Capacity
8.8 Gbps
Number of VLANs
4k, 1024
QOS/VoiceMulticast/Multimedia
Voice Services ✔
IPv6 Support
WRR
QoS - Policing
QoS - Scheduling ✔
802.1p ✔
802.1Q ✔
ISL
CGMP ✔
DSCP ✔
L2 -L4 QOS ACLs ✔
PIM
DMRP ✔
IGMP ✔
IGMP Snooping ✔
QOS - Multiqueues ✔
QOS - Marking Classification ✔
QPM
Power over Ethernet
Multilayer QOS/Security
Layer 2 ✔
Layer 3 ✔
Layer 4
Layer 4+
