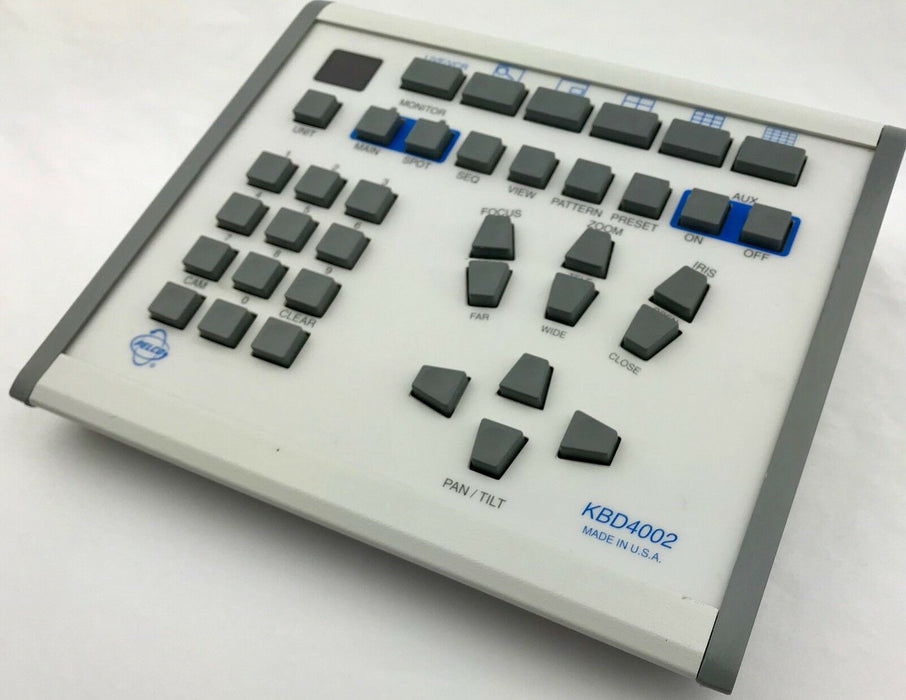

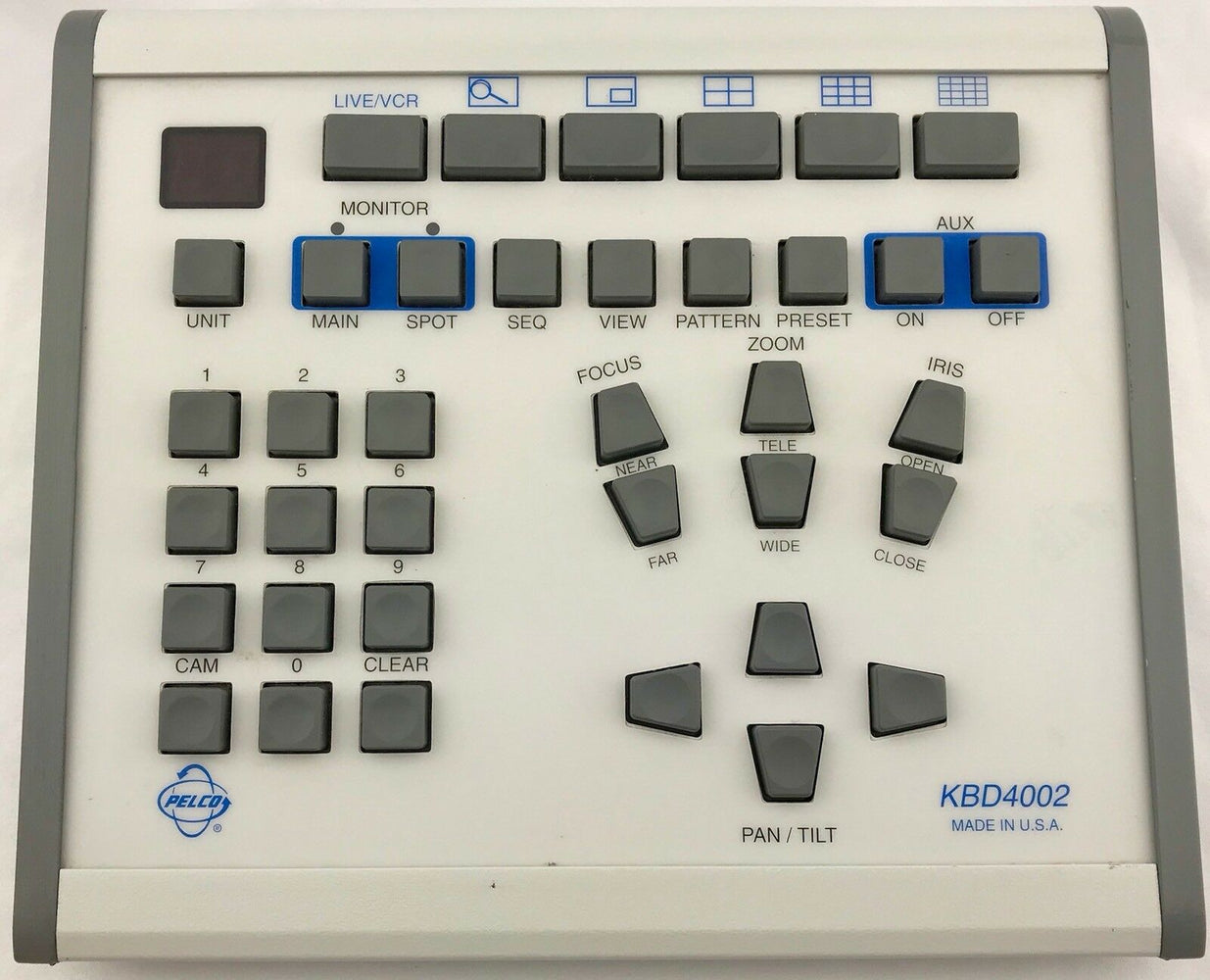

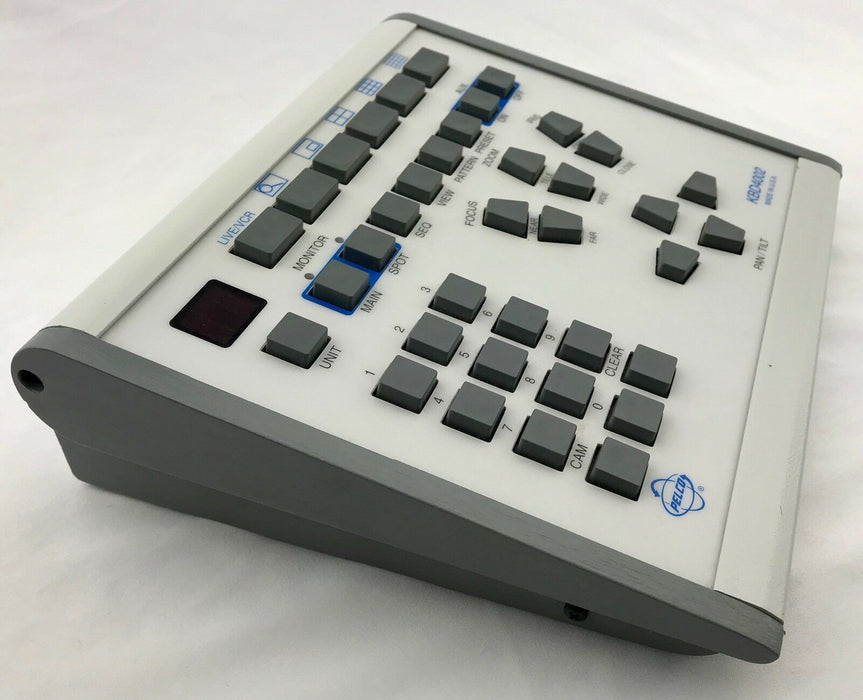

The Pelco KBD4002 is a full-function, economical keyboard controller designed for use with Pelco's MX4000 Genex Multiplexer and MX4000SVR Genex Multiplexer Servers. The keyboard controls major camera functions including, pan/tilt, zoom, iris, start/stop as well as control of a monitor and any auxiliary devices attached to the camera. Depending on the number of multiplexers in use, up to 256 cameras can be controlled with a single KBD4002 keyboard.
Multiplexer Mode
In this mode, the keyboard controls up to 144 cameras when connected to sixteen, 9-channel multiplexers or up to 256 cameras when connected to sixteen, 16-channel multiplexers.
Multiplexer Server Mode
Up to four keyboards can be attached to a single server which accepts up to eight multiplexers. In this mode, a single keyboard controls up to 72 cameras when using 9-channel multiplexers or up to 128 cameras when using 16-channel multiplexers.
Monitor
The keyboard can also be used to control the main and spot monitors attached to the multiplexer. Four, nine or sixteen images can be displayed side by side on a single main monitor with the ability to get a closer look using the 2x, 4x zoom feature, while the spot monitor is used for various camera controls including pan/tilt, zoom and to operate presets, auxiliaries and patterns.
Please pay immediately for Domestic and Global Shipping Center orders. International buyers, please contact us to get better shipping rates.
FREE shipping on ALL domestic orders! We use USPS and UPS Ground. We can offer faster service. Please contact us for cost prior to purchase.
We expect our customers to know what they are buying. We do NOT offer Free technical support for Do-it-Yourself user error. If you require assistance, this, please expect to pay for this support. Contact us for our rates. If support is due to product failure, we will do our best to diagnose and repair or replace.
If you are not 100% satisfied with your purchase, you can return the product and get a full refund or exchange the product for another one. We specialize in high-end, technical products. We can offer system design recommendations. We DO NOT teach how to install integrated security systems or build and manage an IT network.
If you lack the knowledge of how to install these products, please consult with us prior to purchase. We can help you find a professional installer in your area . Any product you return must be in the same condition you received it and in the original packaging.
Factory Warranty Our public eBay listings are backed by a 30 day return policy. We do not promote our listings as anauthorized reseller or partner of any of the products sold in our eBay store. For additional protection, we recommend buying a warranty through an authorized eBay 3rd party service.
We have years of experience designing integrated systems designing systems with brands like Axis, Bosch Security, Pelco, Comnet, Milestone, Hikvision, HID, Altronix, Seagate, Seneca, Cisco, Belden, Ubiquiti and many more. We've designed systems for airports, casinos, transportation systems, hotels, hospitals and education. To respect of our factory parters online selling policies, we only show a small portion of our inventory on putblic listings. Upon requeest we can assist and recommend designs and sell through private eBay listings.
The Pelco KBD4002 is a full-function, economical keyboard controller designed for use with Pelco's MX4000 Genex Multiplexer and MX4000SVR Genex Multiplexer Servers. The keyboard controls major camera functions including, pan/tilt, zoom, iris, start/stop as well as control of a monitor and any auxiliary devices attached to the camera. Depending on the number of multiplexers in use, up to 256 cameras can be controlled with a single KBD4002 keyboard.
Multiplexer Mode
In this mode, the keyboard controls up to 144 cameras when connected to sixteen, 9-channel multiplexers or up to 256 cameras when connected to sixteen, 16-channel multiplexers.
Multiplexer Server Mode
Up to four keyboards can be attached to a single server which accepts up to eight multiplexers. In this mode, a single keyboard controls up to 72 cameras when using 9-channel multiplexers or up to 128 cameras when using 16-channel multiplexers.
Monitor
The keyboard can also be used to control the main and spot monitors attached to the multiplexer. Four, nine or sixteen images can be displayed side by side on a single main monitor with the ability to get a closer look using the 2x, 4x zoom feature, while the spot monitor is used for various camera controls including pan/tilt, zoom and to operate presets, auxiliaries and patterns.
We expect our customers to know what they are buying. We do NOT offer Free technical support for Do-it-Yourself user error. If you require assistance, this, please expect to pay for this support. Contact us for our rates. If support is due to product failure, we will do our best to diagnose and repair or replace.
Please pay immediately for Domestic and Global Shipping Center orders. International buyers, please contact us to get better shipping rates.
FREE shipping on ALL domestic orders! We use USPS and UPS Ground. We can offer faster service. Please contact us for cost prior to purchase.
If you are not 100% satisfied with your purchase, you can return the product and get a full refund or exchange the product for another one. We specialize in high-end, technical products. We can offer system design recommendations. We DO NOT teach how to install integrated security systems or build and manage an IT network.
If you lack the knowledge of how to install these products, please consult with us prior to purchase. We can help you find a professional installer in your area . Any product you return must be in the same condition you received it and in the original packaging.
Factory Warranty Our public eBay listings are backed by a 30 day return policy. We do not promote our listings as anauthorized reseller or partner of any of the products sold in our eBay store. For additional protection, we recommend buying a warranty through an authorized eBay 3rd party service.
On Aug-22-18 at 01:01:51 PDT, seller added the following information:
